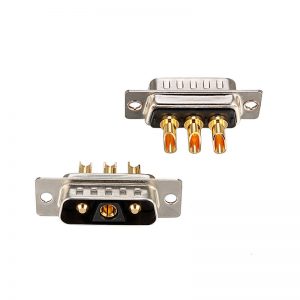

3V3 male combo D-sub high current connectors

  • Solder cup standard mating types

  • Contacts are precision machined with nut

  • Operating Temperature : -55°C to +125°C

  • RoHS & UL Compliant versions available

Inquiry Now

Description

3V3 male combo D-sub high current connectors with machined copper power contacts, steel-tin/nickel-plated shell, high temperature white thermoplastic insulator and 3W3 contact arrangement. The combination D-sub contacts including signal, power, high voltage in the same housing. PCB configurations can be come preloaded with fixed contacts and brackets. You may like 3v3 female d-sub connector.

Specification of 3V3 male combo D-sub high current connectors

P/N  XHY-05-0601


3V3 male combo D-sub high current connectors



PDF Drawing Download

     Material Insulator material PBT+30% G.F (UL94V-O)
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy
Contact plating Gold finish over nickel
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Dielectric rating 300V AC
Current rating 3 AMP
Contacts OD ∮0.76
Contact resistance 15mΩ Max
Insulation resistance 1000MΩ Min at 500V DC
     Mechanical Dielectric withstanding voltage 750V AC rms  at 1 minute
Insertion force ∮0.76: 0.3~2N /Pin
Extraction force ∮0.76: 02 N /Pin min
Durability 500 cycles
Operating temperature -55°C to +125°C

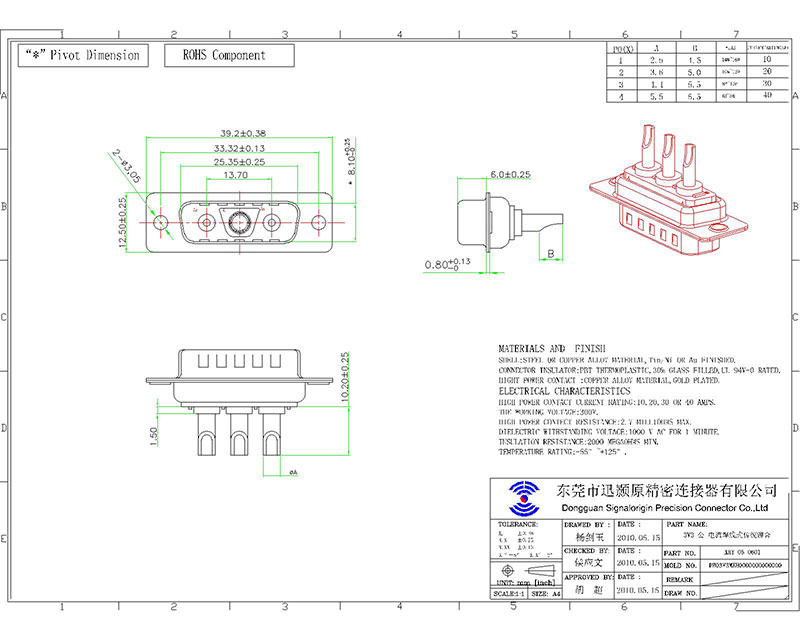

Drawing of 3V3 male combo D-sub high current connectors
