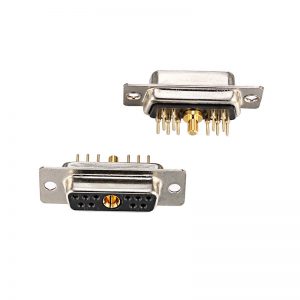

11W1 female d-sub mixed terminal connectors supplier

  • 11W1 female d sub mixed terminal connectors

  • All contacts are precision machined

  • Shell: Steel/SPCC-SD, nickel or tin plated

  • Hight freqency contact: copper alloy material, gold plated

Inquiry Now

Description

11W1 female d sub mixed terminal connectors supplier. 11W1 connector, machined contacts offer advantages with regard to current carrying capacity, contact variety, suitable plating, and an increased mechanical strength. And the power contacts are available with current rating ranging between 10A – 40A with only the size of the terminal being different. The high performance D-sub connector work with a wide variety of electronics. You may like 11w1 male d-sub connector.

Specification of 11W1 female d sub mixed terminal connectors supplier

P/N  XHY-05-2008


11W1 female d sub mixed terminal connectors supplier





PDF Drawing Download

     Material Insulator material PBT thermoplastic, 30% Glass filled, UL 94V-O rated
Insulator color Black/Blue (can be customized)
High power contact Copper alloy material, gold plated
Connector with signal contact material Copper alloy, Gold plated
Shell material Steel or copper alloy material, Tin/Ni or Au finished
     Electrical High power contact current rating 10, 20, 30, 40 A (can be customized)
Connector with signal contact current rating 3 AMP
The working voltage 300V
High power contact resistance 2.7 milliohms max
Insulation resistance 2000 megaohms min
     Mechanical Dielectric withstanding voltage 1000 v AC for 1 minute
Insertion force ∮0.76: 0.3~2N /Pin
Extraction force ∮0.76: 02 N /Pin min
Durability 500 cycles
Operating temperature -55°C to +105°C

Drawing of 11W1 female d sub mixed terminal connectors supplier

11W1 female d sub mixed terminal connectors supplier
