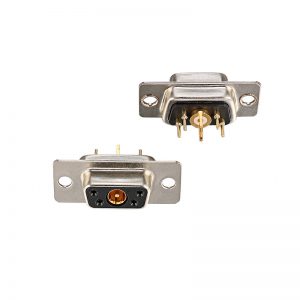

5w1 female coaxial type d connector for sale

  • Hight freqency contact: Phosphor copper alloy material, gold plated

  • All contacts are precision machined

  • Coaxial contact impedance: 50Ω+/-5Ω;75Ω+/-5Ω

  • RoHS & UL Compliant versions available

Inquiry Now

Description

5w1 female coaxial type d connector for sale. This coaxial connector is high reliability D sub with the ability to mix signal, power, coax, high voltage contacts in a single connector. Designed for board to board, cable to cable or board and panel to cable or board applications, options include blind mate and sequential mating. You may like 5w1 male d-sub connector.

Specification of 5w1 female coaxial type d connector for sale

P/N XHY-05-1234
5w1 female coaxial type d connector for sale





PDF Drawing Download



Material Insulator material PBT thermoplastic, 30% Glass filled, UL 94V-O rated
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy
Contact Plating Gold Plated, 1U”-30U”
Contact insulator material TEFLON
Shell Material Steel or copper alloy material, Tin/Ni or Au finished
Electrical Working Voltage 300V AC
Signal Contacts Current Rating 5A
Contact resistance 30mΩ Max
Coaxial contact impedance 50Ω+/-5Ω;75Ω+/-5Ω
Insulation resistance 2000MΩ Min.at 500v DC
Mechanical Dielectric Withstanding Voltage 750V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

Drawing of DB 5w1 female coaxial type d connector for sale5w1 female coaxial type d connector for sale
