44 pin female d sub connectors
High reliability and high density, All contacts are precision machined
Contact terminations can be Solder cup, Solder pin, Wire wrap
RoHS & UL Compliant versions available
Inquiry Now

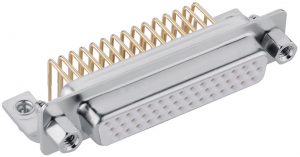

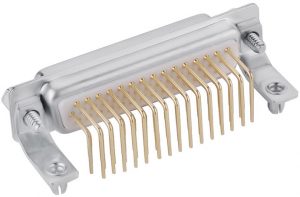

44 pin D-sub connector female right angle type
Description
44 pin D-sub connector female right angle type manufacturer in China. Our high density connectors also available in 15, 26, 44,and 78 positions, they are a good choice for a low cost industry standard high density connection. This connector performs excellently in mission critical and data intensive operations, maintains structural integrity under physical stress, and gives reliable long-lasting versatility and functionality to your devices.
Specification of 44 pin D-sub connector female right angle type
| P/N | XHY-06-0034 | ||
|---|---|---|---|
|
Material | Insulator material | PBT+30% G.F (UL94V-O) |
| Insulator color | Black/Blue (can be customized) | ||
| Contacts material | Phosphor copper | ||
| Contact plating | Gold finish over nickel | ||
| Shell material | Steel/SPCC-SD, nickel or tin plated | ||
| Electrical | Dielectric rating | 300V AC | |
| Current rating | 3 AMP | ||
| Contacts OD | ∮0.76 | ||
| Contact resistance | 15mΩ Max | ||
| Insulation resistance | 1000MΩ Min at 500V DC | ||
| Mechanical | Dielectric withstanding voltage | 750V AC rms at 1 minute | |
| Insertion force | ∮0.76: 0.3～2N /Pin | ||
| Extraction force | ∮0.76: 02 N /Pin min | ||
| Durability | 500 cycles | ||
| Operating temperature | -55°C to +105°C | ||
Drawing of 44 pin D-sub connector female right angle type
Variety of D-sub connectors
 |
 |
 |
 |
 |
||||
| Stander D-sub | Coaxial D-sub | Combo D-sub | High density D-sub | Waterproof D-sub |
Products Certifications
Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.
 |
 |
| Safety UL Certification | ISO9001:2008 |
About us
We are specializing in designing and producing D-Sub Connectors. We have more than 10 years rich experiences in the electronic industry. In addition. Signalorigin is a brand company of Yang Ming precision electronic company, which has established a long-term strategic cooperative relation of our top 10 companies and these companies have years of experiences in our markets.
