90 degree 26 pin d sub connector, high density
All contacts are precision machined
Hight freqency contact: copper alloy material, gold plated
High Density connectors available in 15,26,44,62 and 78 positions
Inquiry Now

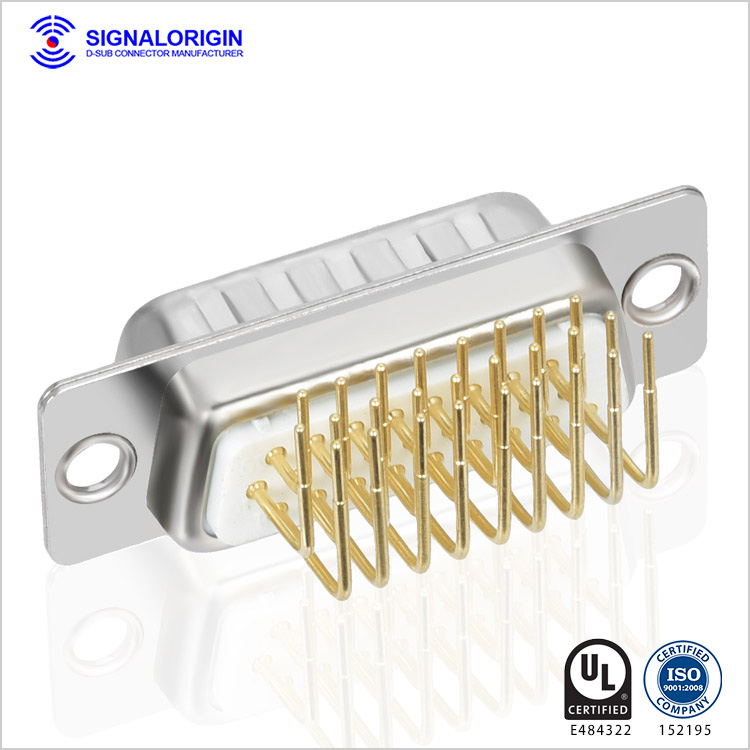

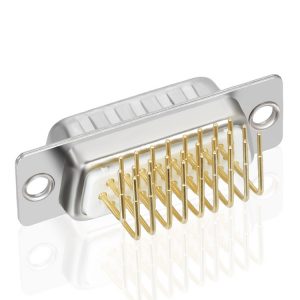

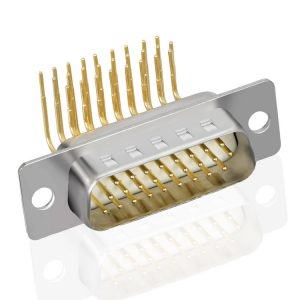

26 pin male 90 degree d sub connector
Description
26 pin male 90 degree d sub connector. A higher number of contacts allows design engineers to enhance their equipment by including more data paths with the same panel cut out. 15, 26, 44, 62 and 78 pin, respectively, are designed in a 9, 15, 25, 37 and 50 pin standard D-Sub size shell. The high density connector have a drawback in comparison and that is the current rating which is only 3A as the standard density have 5A. You may like 26 pin female d-sub connector.
Specification of 26 pin male 90 degree d sub connector
| P/N | XHY-06-0113 | ||
|---|---|---|---|
|
|
Material | Insulator material | PBT+30% G.F (UL94V-O) |
| Insulator color | Black/Blue (can be customized) | ||
| Contacts material | Copper alloy | ||
| Contact plating | Gold finish over nickel | ||
| Shell material | Steel/SPCC-SD, nickel or tin plated | ||
| Electrical | Dielectric rating | 300V AC | |
| Current rating | 3 AMP | ||
| Contacts OD | ∮0.76 | ||
| Contact resistance | 15mΩ Max | ||
| Insulation resistance | 1000MΩ Min at 500V DC | ||
| Mechanical | Dielectric strength | 750V AC rms at 1 minute | |
| Insertion force | ∮0.76: 0.3～2N /Pin | ||
| Extraction force | ∮0.76: 02 N /Pin min | ||
| Durability | 500 cycles | ||
| Operating temperature | -55°C to +105°C | ||

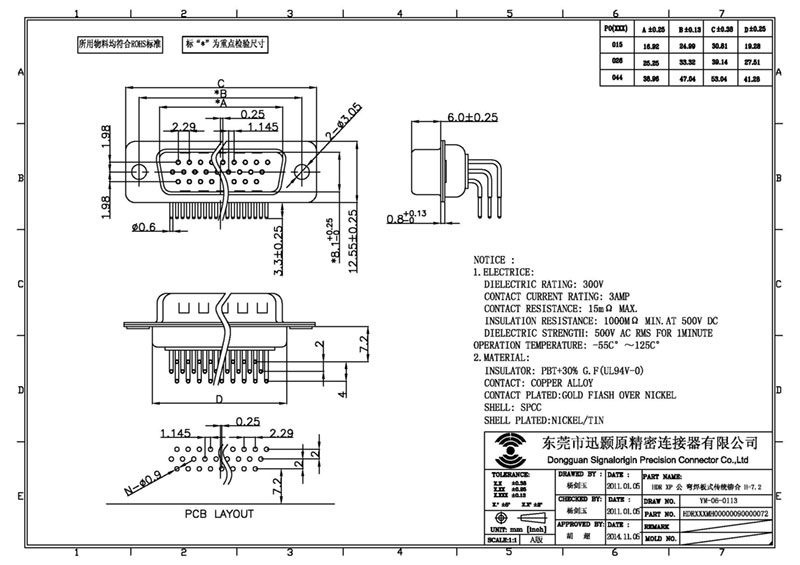

Drawing of 26 pin male 90 degree d sub connector
