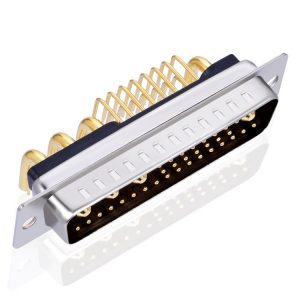

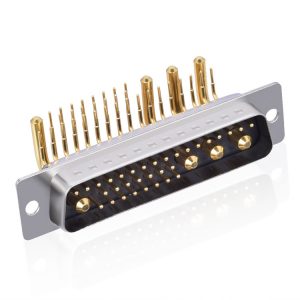

36w4 d-sub combo right angle high current pcb connector

  • 36w4 d-sub combo pcb connector, right angle

  • All contacts are machined copper alloy, full plated

  • Contacts for currents of 10A to 40A can be customized

  • Ideal for high current on printed circuit boards

Inquiry Now

Description

Signalorigin offers a wide range of combination D-SUB high current pcb connector for industrial and commercial applications. 36w4 d-sub combo right angle pcb connector is ideal for high current on printed circuit boards. All contacts are machined and gold plating, power contacts are available with current rating ranging between 10A – 40A with only the size of the terminal being different. You may like 36w4 female d-sub connector.

Specification of 36w4 d-sub combo right angle high current pcb connector

P/N  XHY-05-4225

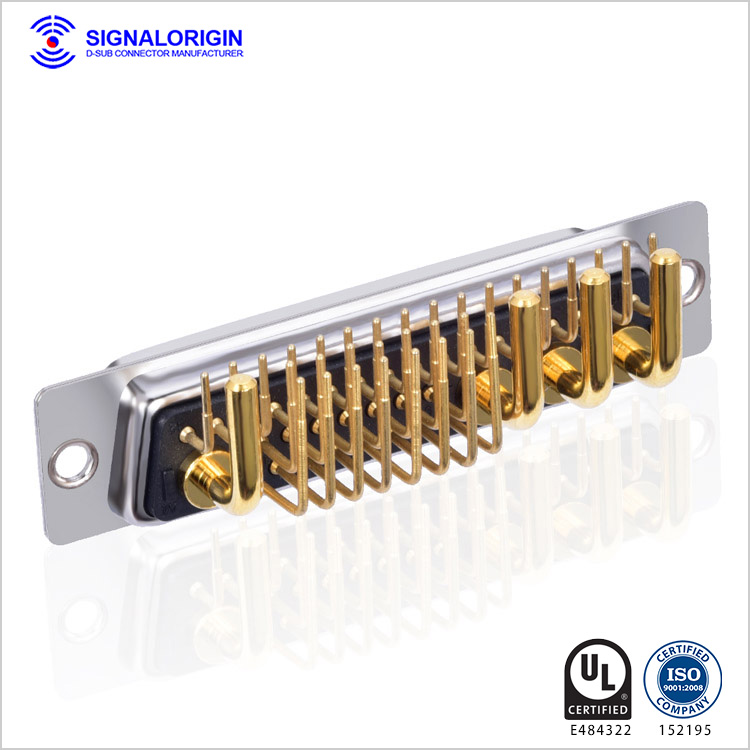

36w4 d-sub combo right angle high current pcb connector

36w4 d-sub combo right angle high current pcb connector







PDF Drawing Download

     Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Brass
Contact plating Gold Plated, 1U”-30U”
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Working voltage 300V AC
High power contacts current rating 10A-40A(customized)
Signal contacts current rating 3A
Contact resistance 2.7 milliohms max
Insulation resistance 2000MΩ Min.at 500v DC
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

Drawing of 36w4 d-sub combo right angle high current pcb connector
36W4 Mixed contact right angle D-sub connector
