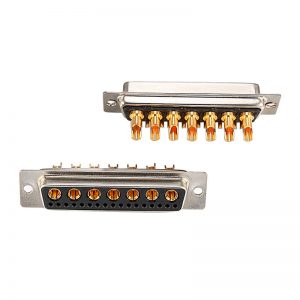

24W7 combo d sub female terminal connector

  • 24W7 combo d sub female terminal connector

  • All contacts are machined copper alloy, full gold flash

  • Suitable for high current application, current rating: 10, 20, 30, 40 A

  • Dielectric withstanding voltace: 1000v ac for 1 minute

Inquiry Now

Description

24W7 combo d sub female terminal connector provide the ideal solution for applications to require signal, high voltage, and high power connections within one connector. Power contacts from 10 amp to 40 amp current handling and signal contacts in various styles complete the product offering. You may like 24w7 male d-sub connectors.

Specification of 24W7 combo d sub female terminal connector

P/N XHY-05-3402


24W7 combo d sub female terminal connector



PDF Drawing Download

     Material Insulator material PBT+30% G.F (UL94V-O)
Insulator color Black/Blue (can be customized)
Contacts material Phosphor copper
Contact plating Gold finish over nickel
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical The working voltage 300V AC
High power contact current rating 10, 20, 30, 40 A (can be customized)
Connector with signal contact current rating 3 A
Contact resistance 2.7 milliohms max
Insulation resistance 2000 megaohms min
     Mechanical Dielectric withstanding voltage 1000 v AC for 1 minute
Insertion force ∮0.76: 0.3~2N /Pin
Extraction force ∮0.76: 02 N /Pin min
Durability 500 cycles
Operating temperature -55°C to +105°C

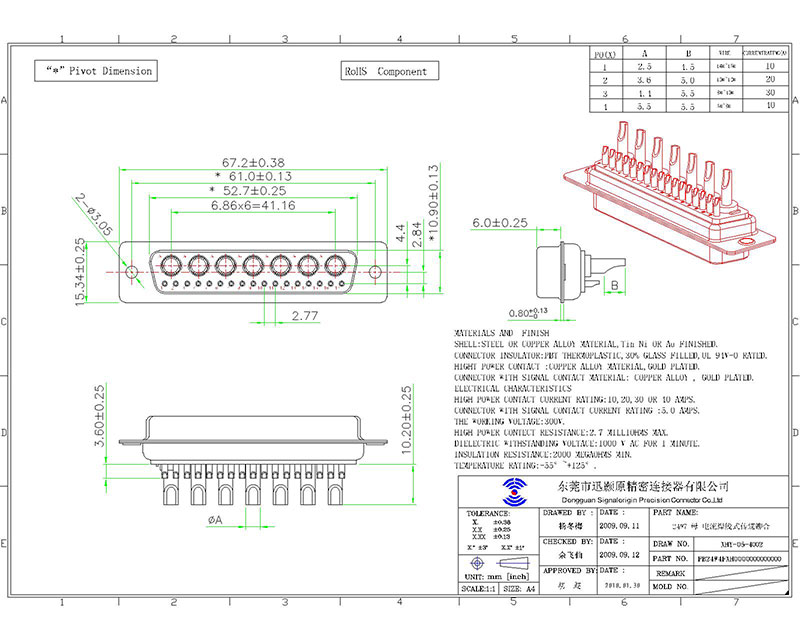

Drawing of 24W7 combo d sub female terminal connector

24W7 combo d sub female terminal connector
