2V2 female waterproof combination d sub connectors

2V2 female waterproof combination d sub connectors

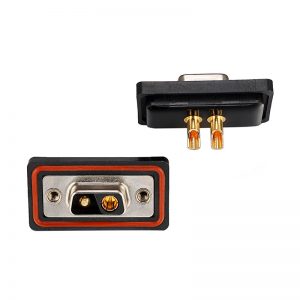

  • 2V2 female combination d sub connectors, waterproof

  • Different wire terminations are possible in a single connector

  • Meets IP67 Requirments

  • Allows signal, high current & high voltage in one connector

Description

2V2 female waterproof combination d sub connectors. Complete solutions are available for PCB and cable mount applications. The cable connector range is complemented by a selection of hoods. For PCB applications, connectors for water resistant panel mounting purposes are available, with or without rear frame. You may like 2v2 male d-sub connectors.

Specification of 2V2 female waterproof combination d sub connectors

P/N XHY-05-0262




2V2 female waterproof combination d sub connectors





PDF Drawing Download

     Material Insulator material PBT thermoplastic, 30% Glass filled, UL 94V-O rated
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy material
Contact plating Gold Plated, 1U”-30U”
Shell material Steel or copper alloy, Tin/Ni or Au finished
     Electrical Working voltage 300V AC
High power contacts current rating 10A-40A(customized)
Contact resistance 2.7milliohms max
Insulation resistance 2000MΩ Min.at 500v DC
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

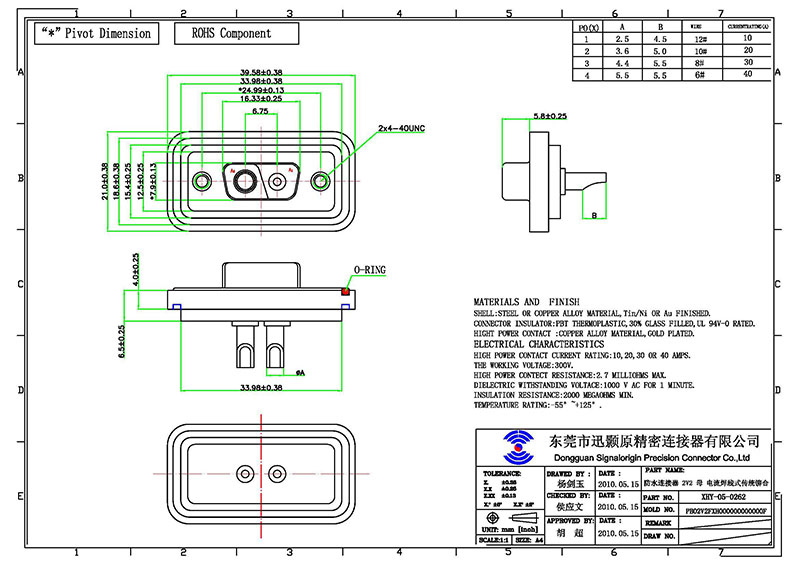

Drawing of 2V2 female waterproof combination d sub connectors



2V2 female waterproof combination d sub connectors

Variety of D-sub connectors

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
Stander D-sub Coaxial D-sub Combo D-sub High density D-sub Waterproof D-sub

Products Certifications

Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.

Safety UL Certification ISO9001:2008
