2V2 male mixed d-sub waterproof power connector

  • 2V2 male mixed d-sub power connector, waterproof

  • Shell: Shell: Steel/SPCC-SD, nickel or tin plated

  • All contacts are machined copper alloy, full plated

  • Various quality d sub connectors classes are available

Inquiry Now

Description

2V2 male mixed d-sub waterproof power connector. D-Sub IP 67 connector series is fully dedicated to water resistant applications and fulfills the rigorous requirements of IP 67. This product family is aimed at equipment placed in harsh environments, indoors and outdoors, where connectors are exposed to moisture, dust and dirt. You may like 2v2 female d-sub connectors.

Specification of 2V2 male mixed d-sub waterproof power connector

P/N XHY-05-0261




2V2 male mixed d-sub waterproof power connector





PDF Drawing Download

     Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy
Contact plating Gold Plated, 1U”-30U”
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Working voltage 300V AC
High power contacts current rating 10A-40A(customized)
Contact resistance 2.7milliohms max
Insulation resistance 2000MΩ Min.at 500v DC
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

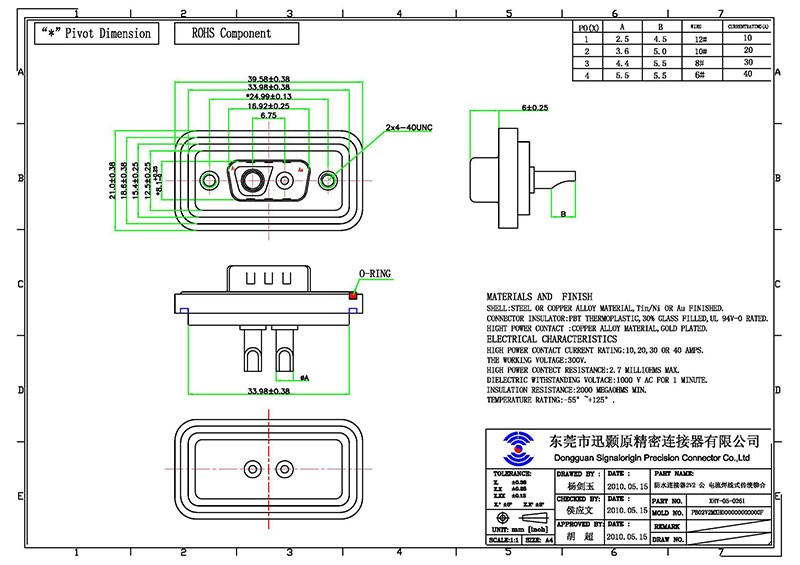

Drawing of 2V2 male mixed d-sub waterproof power connector

2V2 male mixed d-sub waterproof power connector



Variety of D-sub connectors

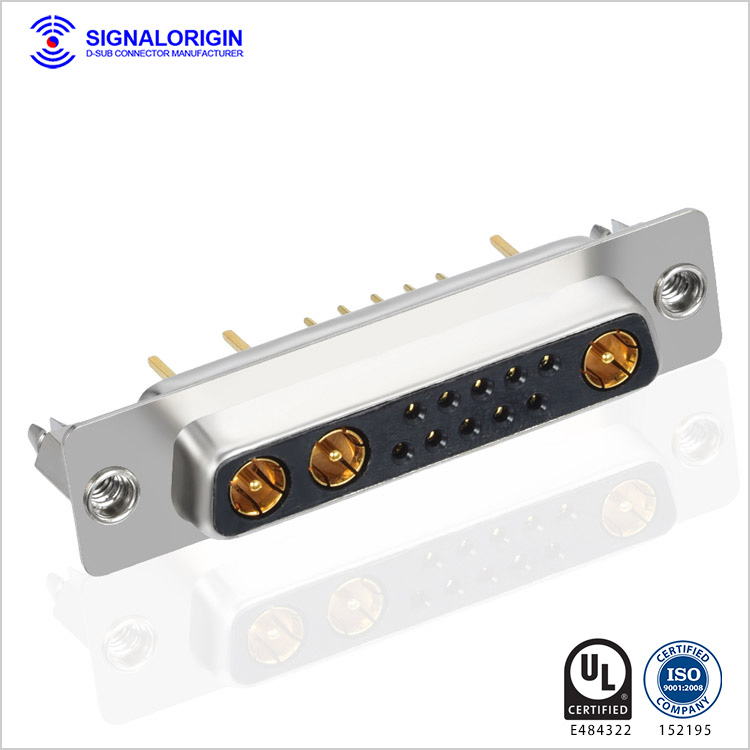

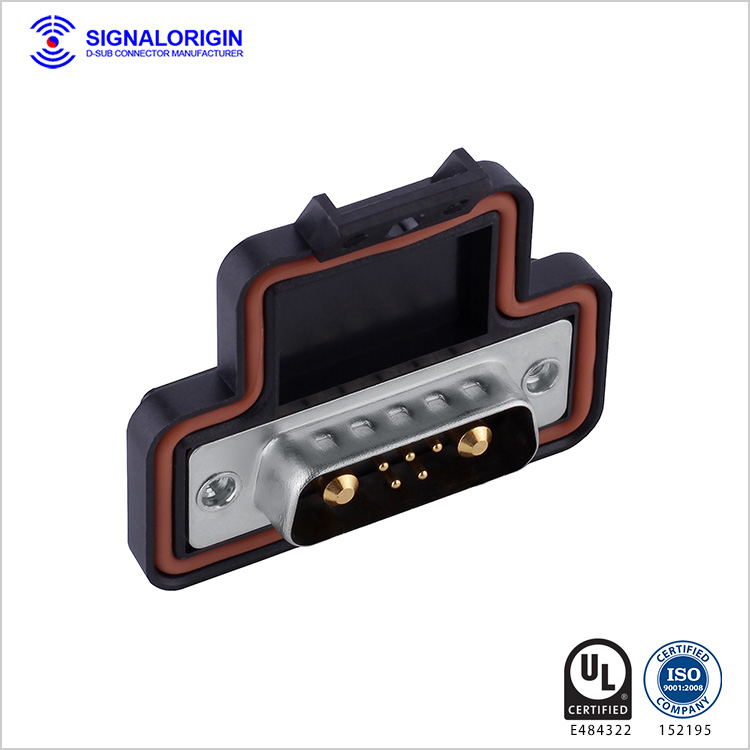

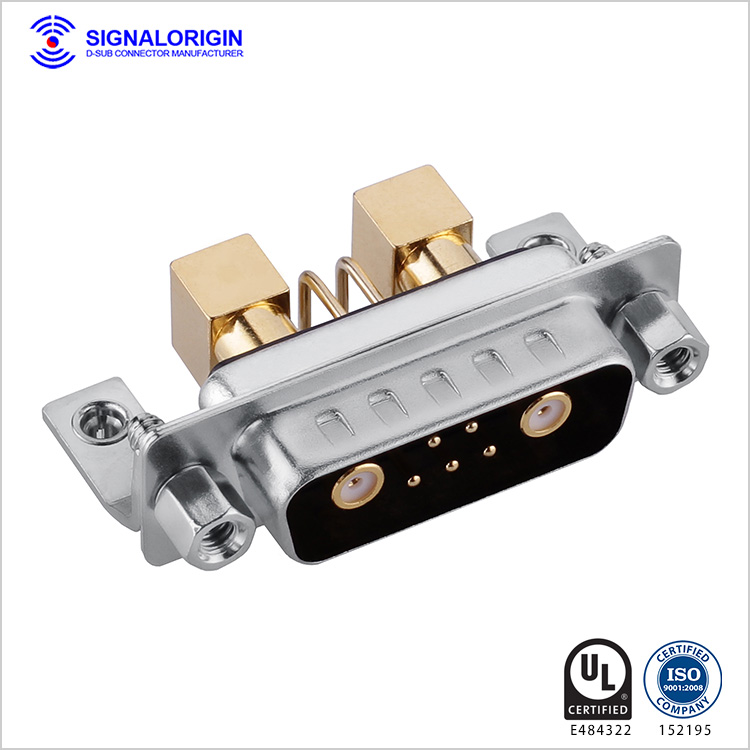

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
Stander D-sub Coaxial D-sub Combo D-sub High density D-sub Waterproof D-sub
