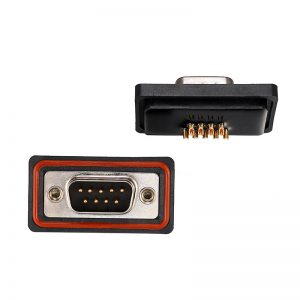

Waterproof solder 9 pin d type male connector

Waterproof solder 9 pin d type male connector

  • Meets IP67 Requirments

  • Allows signal, high current & high voltage in one connector

  • Corrosion protected & corrosion resistant options

  • RoHS & UL Compliant versions availabl

Description

Waterproof solder 9 pin d type male connector are designed for rugged and robust applications where both power and signal are required from a single connection. IP67 power D Connectors are available with 10- 40 amp power. These connectors offer high reliability performance by utilizing a proprietary sealing technology which maintains the same physical size and footprint as standard D-Sub Connectors. You may like 9 pin female d-sub connectors.

Specification of Waterproof solder 9 pin d type male connector

P/N XHY-06-0049


waterproof solder 9 pin d type male connector







PDF Drawing Download

     Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Brass
Contact plating Gold Plated, 1U”-30U”
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Working voltage 300V AC
High power contacts current rating 10A-40A(customized)
Signal contacts current rating 3A
Contact resistance 15mΩ Max
Insulation resistance 2000MΩ Min.at 500v DC
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

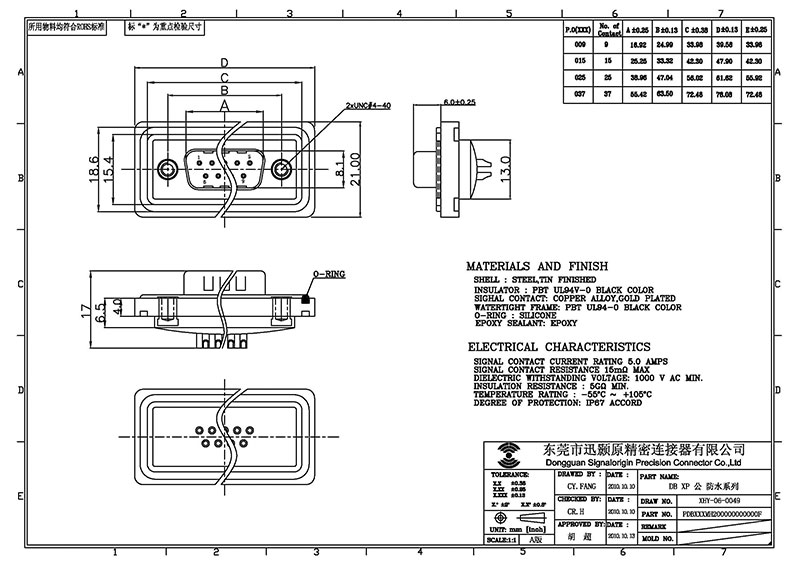

Drawing of waterproof solder 9 pin d type male connector

Waterproof solder 9 pin d type male connector
