25 pin D-sub male connector solder cup type

Home » Products » 25 pin D-sub male connector solder cup type

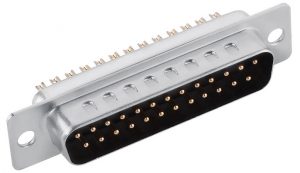

25 pin D-sub male connector solder cup type

  • Safety UL certification and ISO 9001 Quality standard

  • Solder cup standard mating types

  • Contacts are precision machined

  • Personal and friendly customer service

  • D-sub with flexibility, durability, sealability

Inquiry Now

Description

SIGNALORIGIN is the 25 pin d-sub male connector solder cup type manufacturer. Our D-sub connector range consists of both male and female connectors in various terminations such as solder buckets, straight and right angled solder pins with 9, 15, 25 and 37 contact versions. Suitable for military, aerospace, industrial, medical, telecom and computer applications. Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application. You may like What is DB25

What type of port is a female DB25 connector?

Specification of 25 pin D-sub male connector solder cup type

P/N XHY-06-0001










25 pin D-sub male connector solder cup type

25 pin D-sub male connector solder cup type







PDF Drawing Download

     Material Insulator material PBT+30% G. F(UL94V-O)
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy
Contact plating Gold flash over nickel, 1U”-30U”
Shell material SPCC, NICKEL/TIN plated
Screws Copper alloy/Ni plated
     Electrical Working voltage 300V
Contact current rating 5A (customized)
Contact resistance 15mΩ Max
Insulation resistance 1000MΩ Min.at 500v DC
     Mechanical Dielectric strength 500V AC rms  for 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

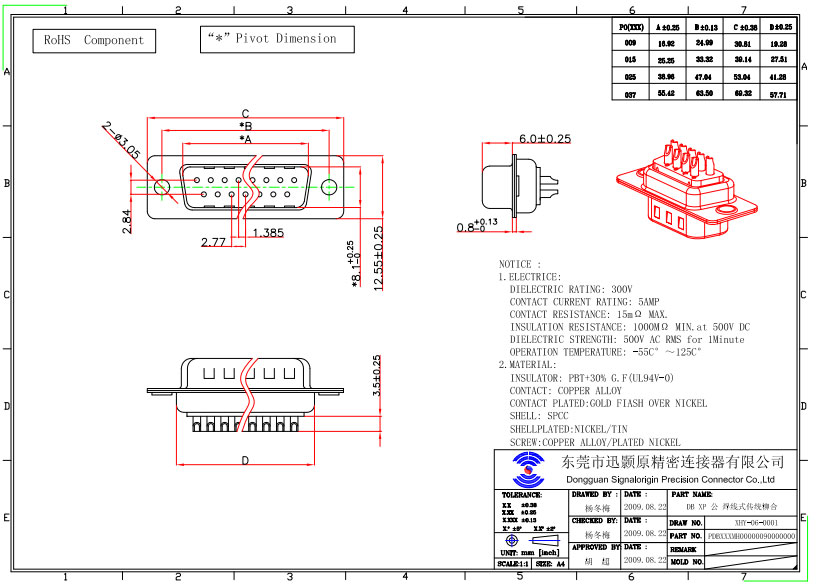

Drawing of 25 pin D-sub male connector solder cup type
