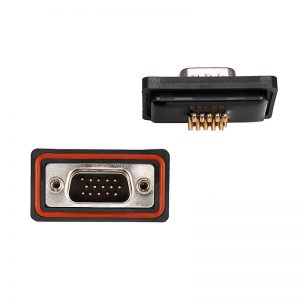

High density d sub 15 pin male connector for sale

High density d sub 15 pin male connector for sale

  • All contacts are precision machined

  • High reliability and high density

  • Meets IP67 Requirments

  • Hight freqency contact: copper alloy material, gold plated

Description

High density d sub 15 pin male connector for sale. High density connectors are made of the highest quality materials to ensure maximum operational efficiency during high intensity and mission critical application. High density versions conform to commercial industry standards and will mate with any opposite gender high density D-sub from other manufacturers. Waterproof solder cup 15 pin d connector. IP 67 D-sub connector in outdoor and severe environment to protect data transmission from threatening by the problem of transmission speed, unstable temperature, humidity environment, oil, dust, corrosive chemicals and vibration, electromagnetic interference and other issues, ensure the stability and reliability of data transmission. You may like 15 pin female d-sub connectors.

Specification of High density d sub 15 pin male connector for sale

P/N XHY-06-0051


High density d sub 15 pin male connector for sale



PDF Drawing Download

     Material Insulator PBT  UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts Copper Alloy
Contact plating Gold finish
Shell material Steel, Tin finished
Watertight frame PBT UL94-0 Black color
O ring Silicone
     Electrical Signal contact current rating 3 AMP
Signal contact resistance 15mΩ MAX
Insulation resistance 5GΩ MIN.
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ∮1.0 : 0.6~2 N /Pin
Extraction force ∮1.0: 0.3 N /Pin min
Durability 500 cycles
Operating temperature -55°C to +105°C

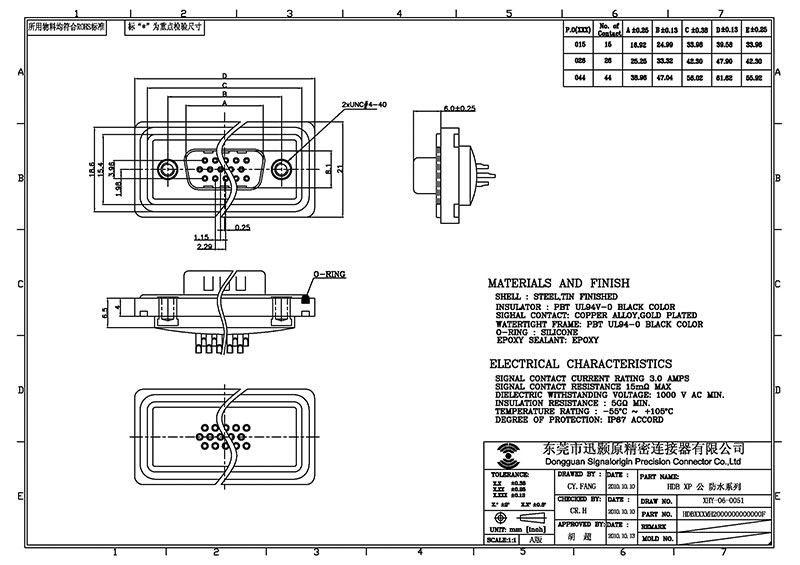

Drawing of high density d sub 15 pin male connector for sale



Variety of D-sub connectors

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
Stander D-sub Coaxial D-sub Combo D-sub High density D-sub Waterproof D-sub
