62 pin female d sub standard connectors

62 pin female d sub standard connectors

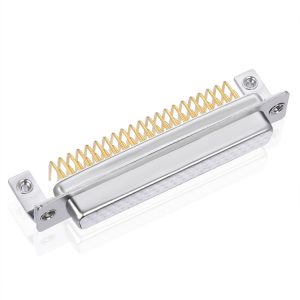

  • 62 pin d sub standard connectors, right angle

  • All contacts are machined copper alloy, full gold flash

  • Contact terminations can be solder cup, solder pin, wire wrap, crimp

  • High Density connectors available in 15,26,44,62 and 78 positions

Description

High density d sub standard connectors with 15 to 78 right-angled contacts. The primary benefit of harting’s d-sub high density connectors is to provide a higher density of contacts within the standard d-sub shell pattern. A higher number of contacts allows design engineers to enhance their equipment by including more data paths with the same panel cut out. You may like 62 pin male d-sub connector.

Specification of 62 pin female d sub standard connectors

P/N XHY-06-0204










62 pin female d sub standard connectors

62 pin high density d-sub male connector



PDF Drawing Download

     Material Insulator material PBT+30% G.F (UL94V-O)
Insulator color Black/Blue (can be customized)
Contacts material Phosphor copper
Contact plating Gold finish over nickel
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Dielectric rating 300V AC
Current rating 3 AMP
Contacts OD ∮0.76
Contact resistance 15mΩ Max
Insulation resistance 1000MΩ Min at 500V DC
     Mechanical Dielectric strength 750V AC rms  at 1 minute
Insertion force ∮0.76: 0.3~2N /Pin
Extraction force ∮0.76: 02 N /Pin min
Durability 500 cycles
Operating temperature -55°C to +105°C

Drawing of 62 pin female d sub standard connectors

62 pin female d sub standard connectors
