High power d-sub contacts manufacturer

  • This d sub terminal is well connected

  • Adding the life of d-sub connector

  • All our contacts are RoHS & UL

  • Compliant versions available,Long service lifes

  • PDF Drawing Download

Inquiry Now

Description

SIGNALORIGIN is the High power d-sub contacts manufacturer. This d-sub contacts pin material is high performance, precision machined contacts, offer advantages with regard to current carrying capacity, and an increased mechanical strength. All our contacts are RoHS & non-RoHS Compliant versions available.
Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application.

Specification of High power d-sub contacts manufacturer

 P/N XHY-01-0196

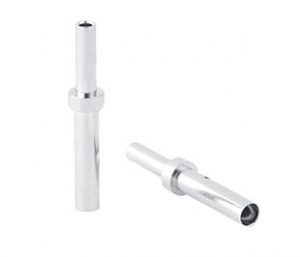

High power d-sub contacts manufacturer

High power d-sub contacts manufacturer







PDF Drawing Download

Material Contacts material Brass
Contact Plating Gold Plated, 1U”-30U”
Contact insulator material TEFLON
Electrical Working Voltage 250V AC
Contact resistance 3mΩ
Coaxial contact impedance 50Ω;75Ω
The radio frequency range 0~4ghz.
Voltage standing wave ratio 1.3max
Insulation resistance 2000MΩ Min
Mechanical Dielectric Withstanding Voltage 750V AC rms  at 1 minute
Insertion force 2-7 N /Pin
Extraction force 0.5 N /Pin
Durability 500 cycles
Operating temperature -55°C to +125°C

Drawing of High power d-sub contacts manufacturer

Power and signal d sub connector terminal wholesale

Variety of D-sub connectors

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
Stander D-sub Coaxial D-sub Combo D-sub High density D-sub Waterproof D-sub
