D-sub with flexibility, durability, sealability
High current rating:10A, 20A, 30A, 40AAllows signal, high current & high voltage in one connector
Corrosion protected & corrosion resistant options
RoHS & UL Compliant versions availabl
Inquiry Now
d-sub male and female 2w2 power connector manufacturer
Description
SIGNALORIGIN is the d-sub male and female 2w2 power connector manufacturer. All contacts are machined and gold plating, the power contacts are available with current rating ranging between 10A – 40A with only the size of the terminal being different. The high performance D-sub connector work with a wide variety of electronics. They are often found on communications ports, creating connections between different products.
Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application.
Specification of d-sub male and female 2w2 power connector manufacturer
| P/N | XHY-05-0421 | ||
|---|---|---|---|
|
|
Material | Insulator material | PBT thermoplastic, 30% glass filled, UL94V-O rated |
| Insulator color | Black/Blue (can be customized) | ||
| Contacts material | Copper alloy | ||
| Contact plating | Gold Plated, 1U”-30U” | ||
| Shell material | Steel or Copper ally, Tin/Ni or Au finished | ||
| Bracket/screw | Copper alloy, Ni plated | ||
| Electrical | Working voltage | 300V AC | |
| High power contacts current rating | 10A-40A(customized) | ||
| Contact resistance | 2.7 milliohms max | ||
| Insulation resistance | 2000 megaohms min | ||
| Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute | |
| Insertion force | ￠1.0 :0.6～2 N /Pin ￠3.6:2～7 N /Pin |
||
| Extraction force | ￠1.0:0.2 N /Pin MIN ￠3.6:0.5 N /Pin MIN |
||
| Durability | 500 cycles | ||
| Operating temperature | -55°C to +125°C | ||

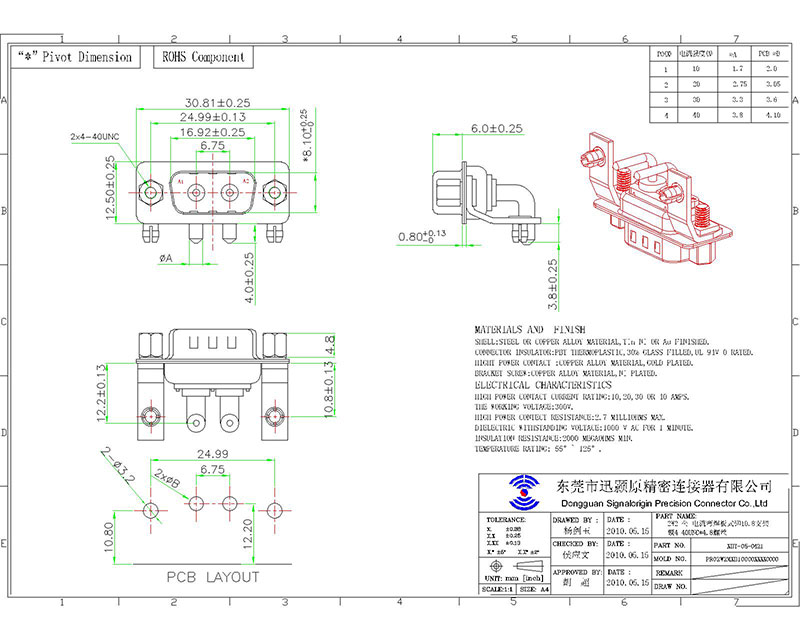

Drawing of d-sub male and female 2w2 power connector manufacturer
Variety of D-sub connectors
 |
 |
 |
 |
 |
||||
| Stander D-sub | Coaxial D-sub | Combo D-sub | High density D-sub | Waterproof D-sub |
Products Certifications
Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.
 |
 |
| Safety UL Certification | ISO9001:2008 |
