21W4 D-sub coaxial connector male solder cup

  • Safety UL certification and ISO 9001 Quality standard

  • Solder cup types

  • Contacts are precision machined

  • Personal and friendly customer service

  • D-sub with flexibility, durability, sealability

Inquiry Now

Description

SIGNALORIGIN is the 21W4 D-sub coaxial connector male solder cup supplier. Machine contacts ensure maximum operational efficiency during high intensity and mission critical application.
This connector is flame retardant glass filled PBT insulators and gold over nickel plated machined contacts are housed in nickel or tin plated steel shells. d-sub high density connectors is to provide a higher density of contacts within the standard d-sub shell pattern.
Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application.

  • D-sub with flexibility, durability, sealability
  • The radio frequency: 0~3GHz
  • High current rating:10A, 20A, 30A, 40A customization
  • Safety UL certification and ISO 9001 Quality standard
  • Personal and friendly customer service
  • Comprehensive product size, and customization available
  • 3~5 set free sample are provide for you
  • Short-term products delivery, normally 3~7 days

Specification of 21W4 D-sub coaxial connector male solder cup

P/N XHY-05-3205

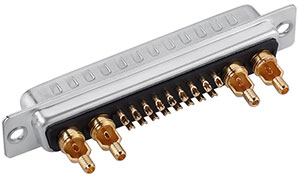

21W4 D-sub coaxial connector male straight

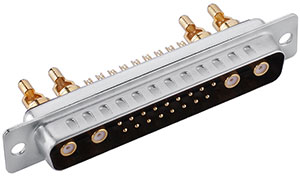

21W4 D-sub coaxial connector male straight











PDF Drawing Download

     Material Insulator material PBT thermoplastic, 30% Glass filled, UL 94V-O rated
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy material
Contact plating Gold flash over nickel, 1U”-30U”
Shell material Steel or copper alloy material, Tin/Ni or Au finished
     Electrical High frequency contact current rating 50 or 75 ohm
The radio frequency 0~3GHz
Connector with signal contact current rating  5 A
The working voltage 300V
High frequency contact resistance 10 milliohms max
     Mechanical Dielectric withstanding voltage 1000 v AC for 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

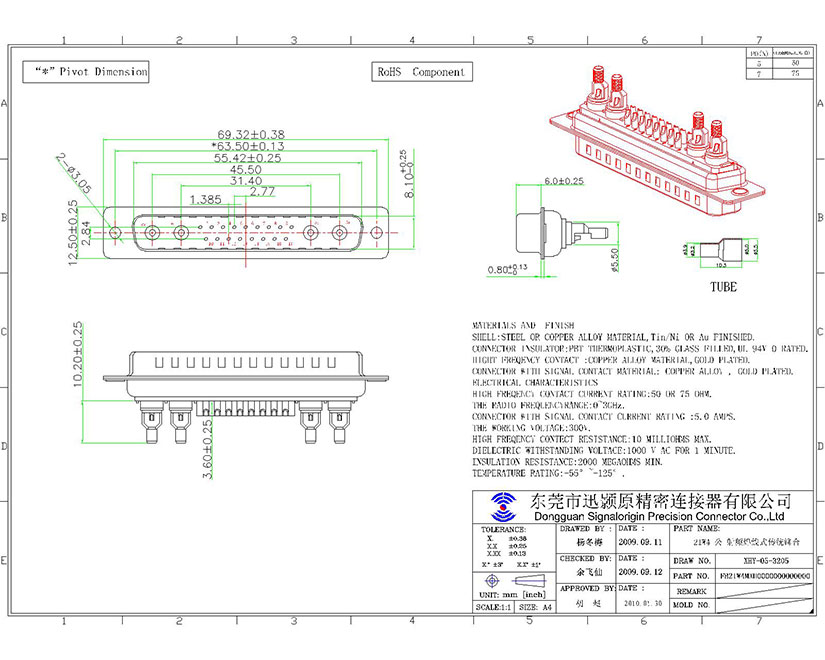

Drawing of 21W4 D-sub coaxial connector male solder cup
