Signal d sub male right angle coax terminal supplier

Signal d sub male right angle coax terminal supplier

  • All coax contacts are precision machined

  • Coaxial contact impedance: 50Ω+/-5Ω;75Ω+/-5Ω

  • Dielectric withstanding voltace: 750v ac for 1 minute

  • All our contacts are RoHS & UL Compliant versions available

Description

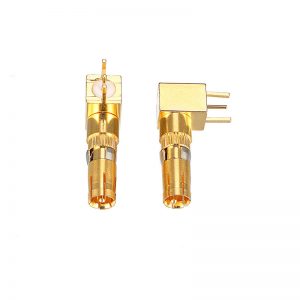

Signal d sub male right angle coax terminal supplier. It’s material is copper alloy with full gold plated finish, high performance, precision machined contacts, offer advantages with regard to current carrying capacity, and an increased mechanical strength, 500 mating cycles. All our contacts are RoHS & non-RoHS Compliant versions available.

Specification of Signal d sub male right angle coax terminal supplier

 P/N XHY-07-0007








signal d sub male right angle coax terminal supplier

PDF Drawing Download

Material Contacts material Brass
Contact Plating Gold Plated, 1U”-30U”
Contact insulator material TEFLON
Electrical Working Voltage 250V AC
Contact resistance 3mΩ
Coaxial contact impedance 50Ω;75Ω
The radio frequency range 0~4ghz.
Voltage standing wave ratio 1.3max
Insulation resistance 2000MΩ Min
Mechanical Dielectric Withstanding Voltage 750V AC rms  at 1 minute
Insertion force 2-7 N /Pin
Extraction force 0.5 N /Pin
Durability 500 cycles
Operating temperature -55°C to +125°C

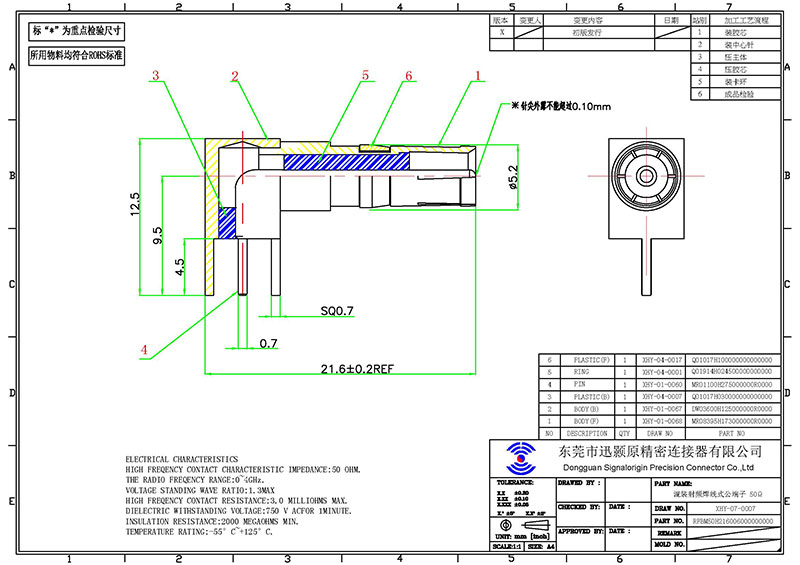

Drawing of signal d sub male right angle coax terminal supplier

Signal d sub male right angle coax terminal supplier
