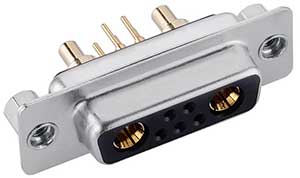

7W2 D-sub high current female dip type connector

  • High current rating:10A, 20A, 30A, 40A

  • Allows signal, high current & high voltage in one connector

  • Corrosion protected & corrosion resistant options

  • RoHS & UL Compliant versions available

Inquiry Now

Description

SIGNALORIGIN is the 7W2 D-sub high current female dip type connector manufacturer. The Power D-Sub mixes both power contacts and signal contacts in the same connector or all contact is signal contacts. 7W2 have 2pcs power contacts and 5pcs signal contacts. The Power contacts are available with current rating ranging between 10A – 40A with only the size of the terminal being different.
Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application.

  • D-sub with flexibility, durability, sealability
  • High current rating:10A, 20A, 30A, 40A customization
  • Safety UL certification and ISO 9001 Quality standard
  • Personal and friendly customer service
  • Comprehensive product size, and customization available
  • 3~5 set free sample are provide for you
  • Short-term products delivery, normally 3~7 days

Specification of 7W2 D-sub high current female dip type connector

P/N XHY-05-1106












7W2 D-sub high current female dip type connector

7W2 D-sub high current female dip type connector















PDF Drawing Download

     Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Brass
Contact plating Gold Plated, 1U”-30U”
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Working voltage 300V AC
High power contacts current rating 10A-40A(customized)
Signal contacts current rating 5A
Contact resistance 2.7 milliohms max
Insulation resistance 2000MΩ Min.at 500v DC
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

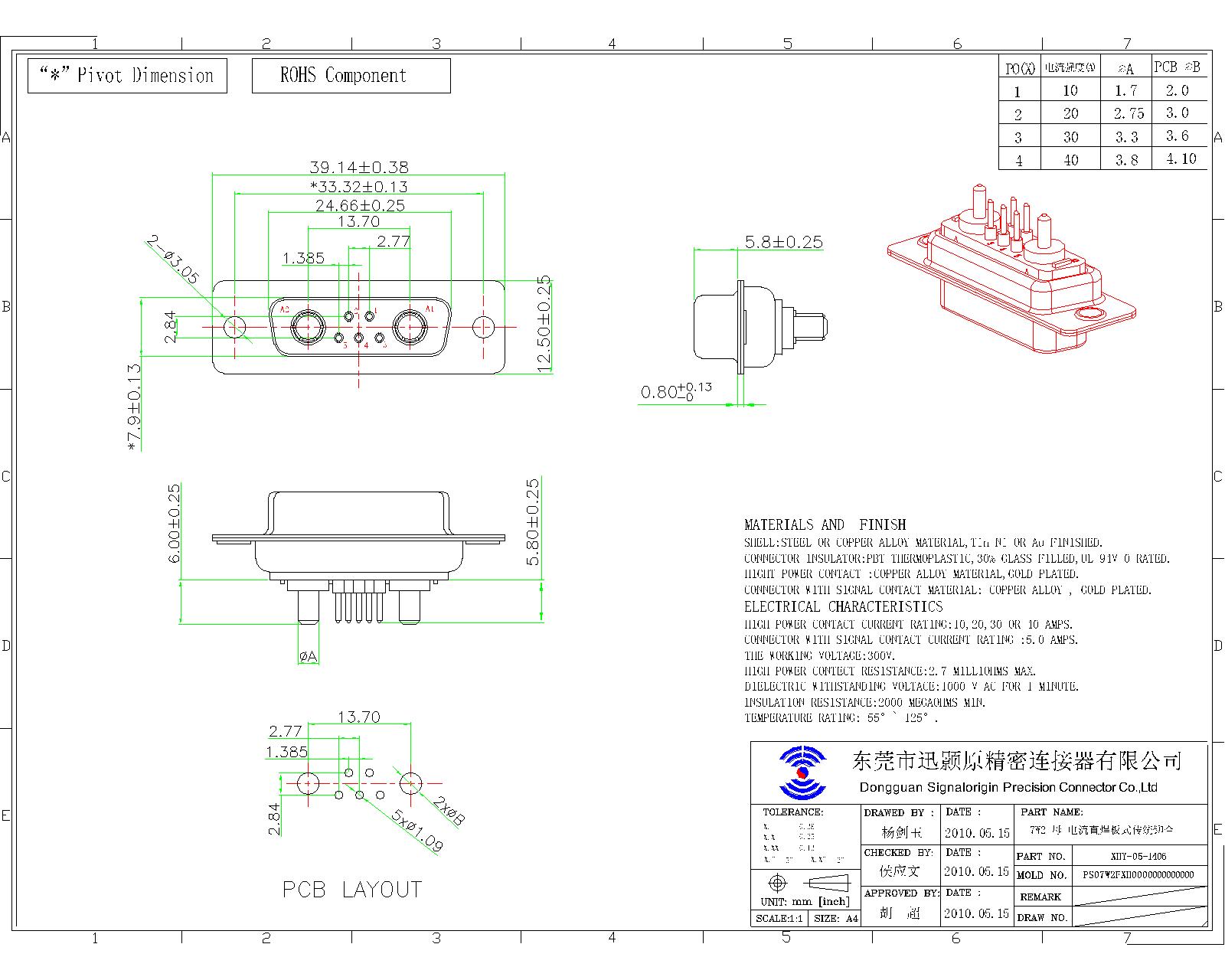

Drawing of 7W2 D-sub high current female dip type connector

7W2 D-sub high current female dip type connector
