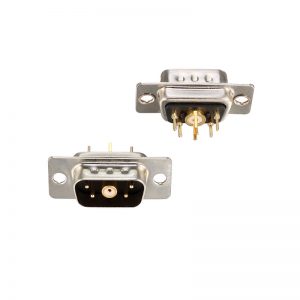

5W1 male coaxial power d shell connector

  • Shell: steel material, Tin/Ni or Au finished

  • Hight freqency contact:copper alloy material, gold plated

  • Coaxial contact impedance: 50Ω+/-5Ω;75Ω+/-5Ω

  • Dielectric withstanding voltace: 1000v ac for 1 minute

Inquiry Now

Description

5W1 male coaxial power d shell connector is mixed signal, power, coax, high voltage contacts in a single connector. 5w1, which means there is 5 contacts where 1 of them is coaxial contact, 4 signals and 1coaxial. The high freqency contact current rating of coaxial contacts is 50 or 75 ohm. You may like 5w1 female d-sub connector.

Specification of 5W1 male coaxial power d shell connector

P/N XHY-05-1233




5W1 male coaxial power d shell connector

PDF Drawing Download



Material Insulator material PBT thermoplastic, 30% Glass filled, UL 94V-O rated
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy
Contact Plating Gold Plated, 1U”-30U”
Contact insulator material TEFLON
Shell Material Steel or copper alloy material, Tin/Ni or Au finished
Electrical Working Voltage 300V AC
Signal Contacts Current Rating 5A
Contact resistance 30mΩ Max
Coaxial contact impedance 50Ω+/-5Ω;75Ω+/-5Ω
Insulation resistance 2000MΩ Min.at 500v DC
Mechanical Dielectric Withstanding Voltage 750V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

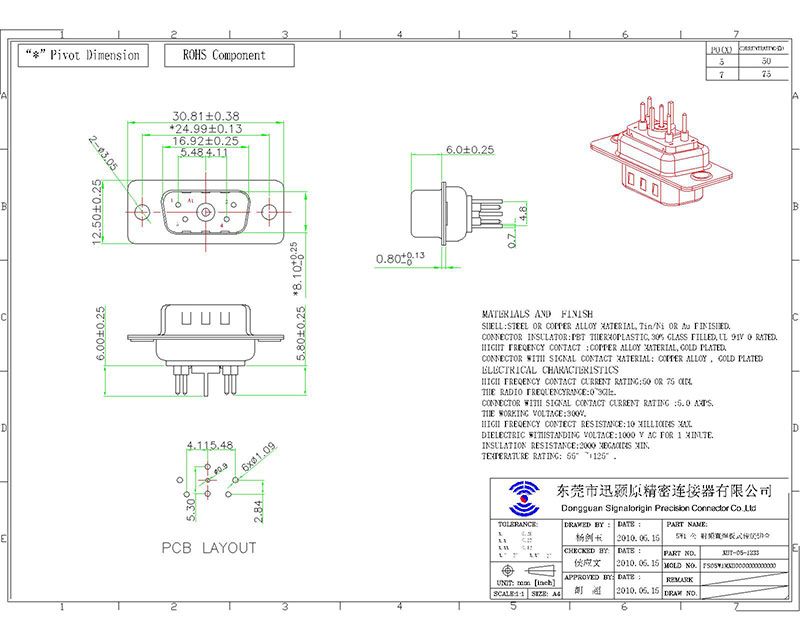

Drawing of 5W1 male coaxial power d shell connector

5W1 male coaxial power d shell connector
