44 pin male d sub high density connectors

  • 44 pin male d sub high density connectors

  • High reliability ,High density

  • All contacts are precision machined

  • Contact terminations can be Solder cup, Solder pin, Wire wrap

Inquiry Now

Description

44 pin male d sub high density connectors, with 6.0 copper alloy fork,with nuts, insulators and gold over nickel plated machined contacts are housed in nickel or tin plated steel shells. High Density version connectors available in 15,26,44,62 and 78 positions. All our contacts are RoHS & non-RoHS Compliant versions available. These connectors are available in standard and high density versions. You may like 44 pin female d-sub connectors.

Specification of 44 pin male d sub high density connectors

P/N XHY-06-0033


44 pin male d sub high density connectors



PDF Drawing Download

     Material Insulator material PBT+30% G.F (UL94V-O)
Insulator color Black/Blue (can be customized)
Contacts material Copper alloy
Contact plating Gold finish over nickel
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Dielectric rating 300V AC
Current rating 3 AMP
Contacts OD ∮0.76
Contact resistance 15mΩ Max
Insulation resistance 1000MΩ Min at 500V DC
     Mechanical Dielectric withstanding voltage 750V AC rms  at 1 minute
Insertion force ∮0.76: 0.3~2N /Pin
Extraction force ∮0.76: 02 N /Pin min
Durability 500 cycles
Operating temperature -55°C to +105°C

Drawing of 44 pin male d sub high density connectors

44 pin male d sub high density connectors

Variety of D-sub connectors

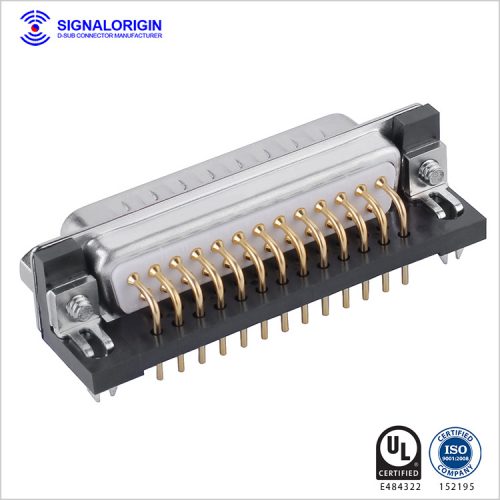

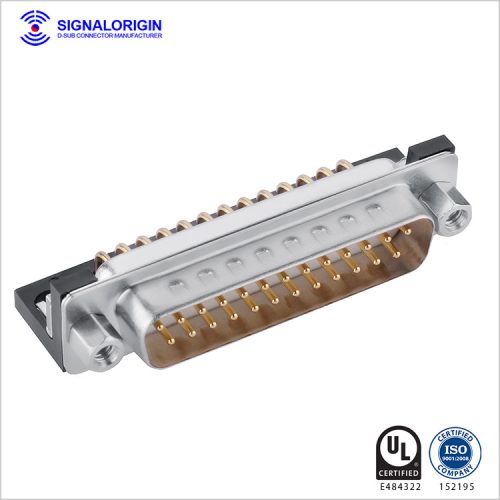

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
