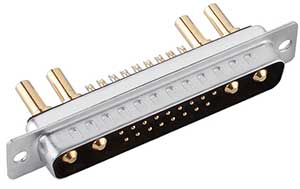

21W4 D-sub male connector high current solder cup

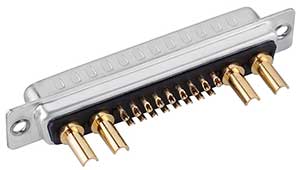

21W4 D-sub male connector high current solder cup

  • High current rating:10A, 20A, 30A, 40A

  • Allows signal, high current & high voltage in one connector

  • Corrosion protected & corrosion resistant options

  • RoHS & UL Compliant versions available

Description

SIGNALORIGIN is the 21W4 D-sub male connector high current solder cup manufacturer. Combo D-SUB R/A 21W4 Connector. The Power D-Sub mixes both power contacts and signal contacts in the same connector or all contact is signal contacts. 21W4 have 4pcs power contacts and and 17pcs signal contacts. The Power contacts are available with current rating ranging between 10A – 40A with only the size of the terminal being different.
Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application.

Specification of 21W4 D-sub male connector high current solder cup

P/N XHY-05-3201








21W4 D-sub male connector high current solder cup

21W4 D-sub male connector high current solder cup











PDF Drawing Download

     Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Brass
Contact plating Gold Plated, 1U”-30U”
Shell material Steel/SPCC-SD, nickel or tin plated
     Electrical Working voltage 300V AC
High power contacts current rating 10A-40A(customized)
Signal contacts current rating 5A
Contact resistance 2.7 milliohms max
Insulation resistance 2000MΩ Min.at 500v DC
     Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

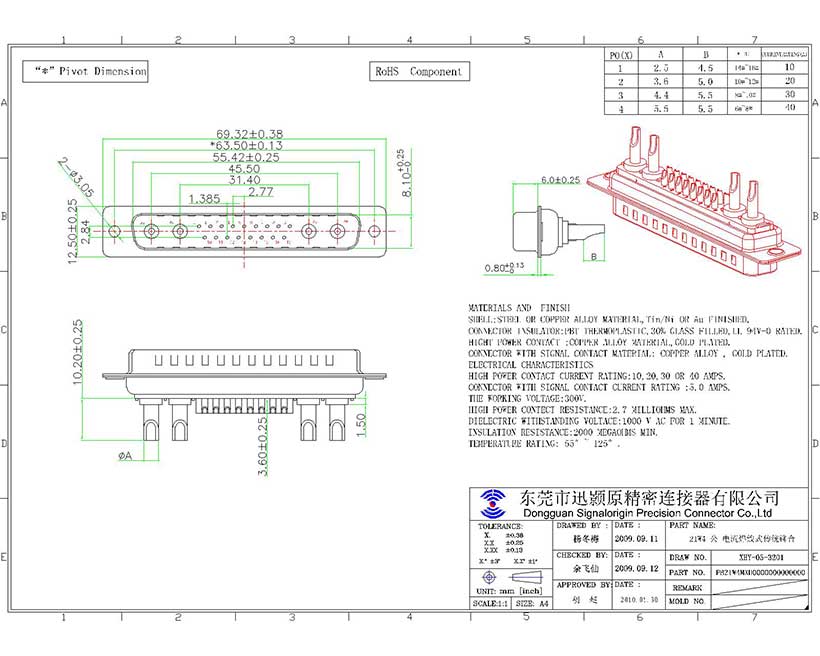

Drawing of 21W4 D-sub male connector high current solder cup

21W4 D-sub male connector high current solder cup
