5W5 right angle high power D-sub connectors, with nickel plated bracket, insulators and gold over nickel plated machined contacts are housed in nickel or tin plated steel shells. Machined contacts offer advantages with regard to current carrying capacity, contact variety, suitable plating, and an increased mechanical strength.
|5W5 right angle high power D-sub connectors

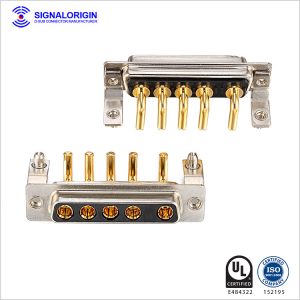

|Male 5W5 right angle high power D-sub connectors
|Female 5W5 right angle high power D-sub connectors
Specification of 5W5 right angle high power D-sub connectors
Materials and finish
- Shell: Steel or copper alloy material, Tin/Ni or Au finished
- Connector insulator: PBT thermoplastic, 30% Glass filled, UL 94V-O rated
- High power contact: Copper alloy material, gold plated
- High power contact current rating: 10, 20, 30, 40 A (can be customized)
- The working voltage: 300V
- High power contact resistance: 10 milliohms max
- Dielectric withstanding voltage: 1000 v AC for 1 minute
- Insulation resistance:2000 megaohms min
- Temperature rating: -55°C ~125°C

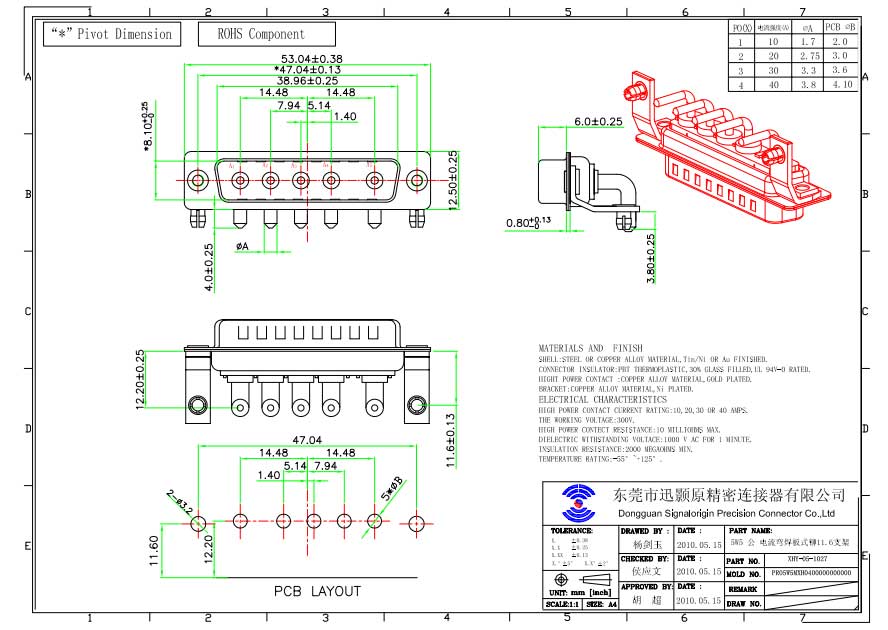

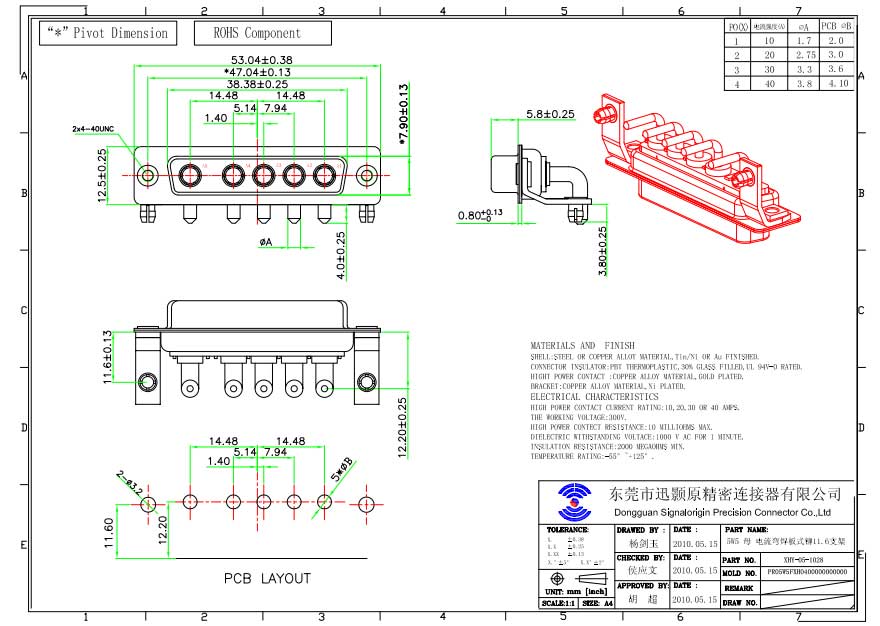

Drawing of 5W5 right angle high power D-sub connectors
Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.
|Safety UL Certification
Signalorigin is a China leader in providing interconnect solutions into a wide range of markets and applications, from traditional connectors to the latest and next generation technical products.
Signalorigin is a manufacturer of electrical connectors and associated products for the electronics industry. The Signalorigin product line-up includes a full line of D-Sub connectors, hoods and accessories, as well as, high voltage contacts and accessories to be used with our connectors.
|High density D-sub
- 75 and 50 Ohm coaxial contacts
- High power contacts up to 40 A
- High voltage contacts up to 3 kV
Mixed Layout Connectors feature high abrasion and corrosion resistance, low thermal contact resistance, very good contact characteristics, excellent solder-ability, and even plating density. Depending on the application, solder pot, straight PCB, or crimp terminations are available, as well as insertion and removal tools for the crimp versions to ensure safe and reliable installation.
