8W8 D-sub coaxial connector from Signalorigin. All contacts are machined processing, phosphor copper material, gold plated. Coaxial D-Sub have 8 coaxial contacts. It is full layout. The impedance for the coaxial contacts are 50Ω or 75Ω.

8W8 D-sub coaxial connector

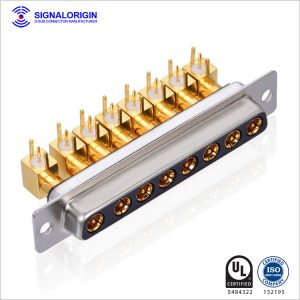

Right angle female coaxial d sub 8W8 connector wholesale

Specification of 8W8 D-sub coaxial connector

Materials and finish

  • Shell: Steel or copper alloy material, Tin/Ni or Au finished
  • Connector insulator: PBT thermoplastic, 30% Glass filled, UL 94V-O rated
  • High frequency contact: Copper alloy material, gold plated

Electrical characteristics

  • High frequency contact current rating: 50 or 75 ohm
  • The radio frequency : 0~3GHz
  • The working voltage: 300V
  • High frequency contact resistance: 10 milliohms max
  • Dielectric withstanding voltage: 1000 v AC for 1 minute
  • Insulation resistance:2000 megaohms min
  • Temperature rating: -55°C ~125°C

Drawing of 8W8 D-sub coaxial connector

8W8 D-sub coaxial connector
