3-position Signalorigin® D-sub Connector offers the familiar shape and functionality of a combination D-Subminiature connector with high current, high performance contact technology. 3W3 full layout high power D-sub connector with steel-tin/nickel-plated shell, high temperature white thermoplastic insulator, machined contacts offer advantages with regard to current carrying capacity, contact variety, suitable plating, and an increased mechanical strength.
|3W3 full layout high power D-sub connector|

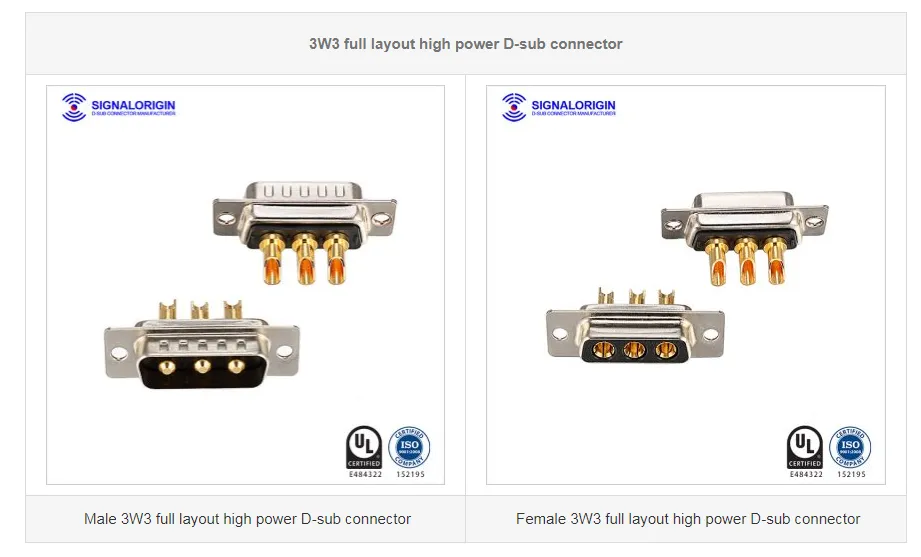

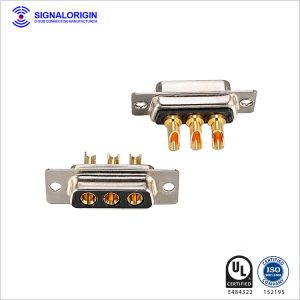

|Male 3W3 full layout high power D-sub connector||Female 3W3 full layout high power D-sub connector|
Specification of 3W3 full layout high power D-sub connector
Materials and finish
- Shell: Steel or copper alloy material, Tin/Ni or Au finished
- Connector insulator: PBT thermoplastic, 30% Glass filled, UL 94V-O rated
- High power contact: Copper alloy material, gold plated
- High power contact current rating: 10, 20, 30, 40 A (can be customized)
- The working voltage: 300V
- High power contact resistance: 2.7 milliohms max
- Dielectric withstanding voltage: 1000 v AC for 1 minute
- Insulation resistance:2000 megaohms min
- Temperature rating: -55°C ~125°C

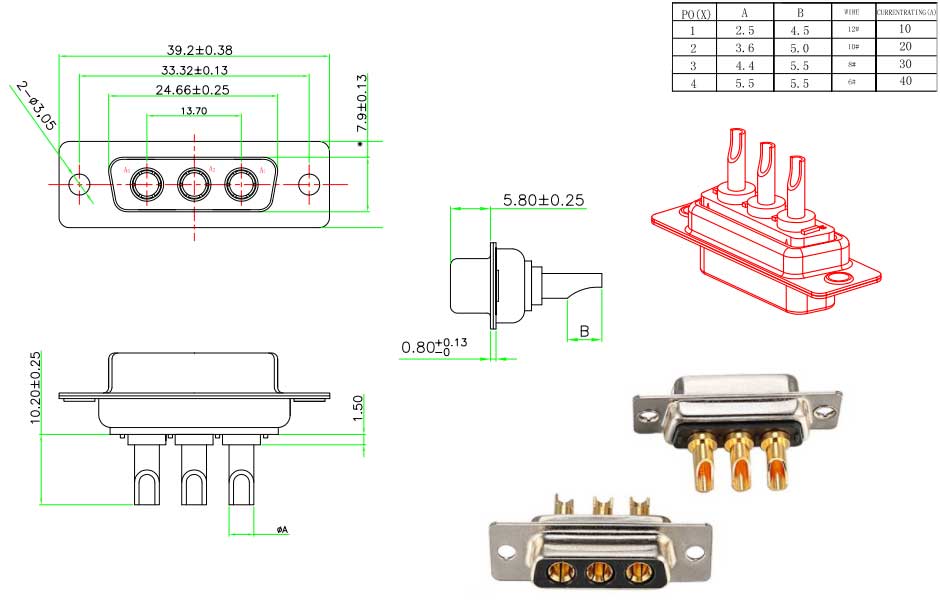

Drawing of 3W3 full layout high power D-sub connector
Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.

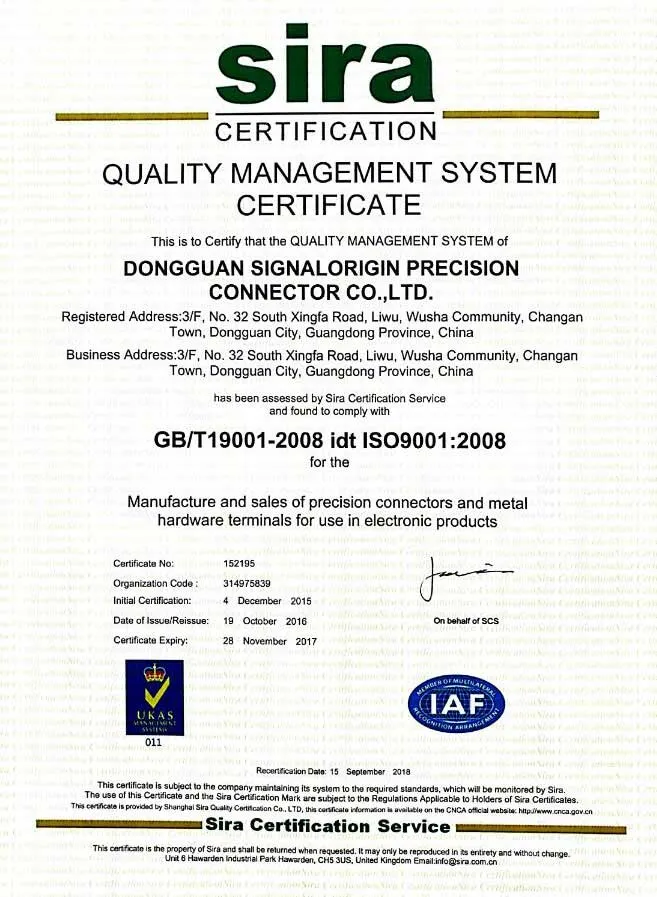

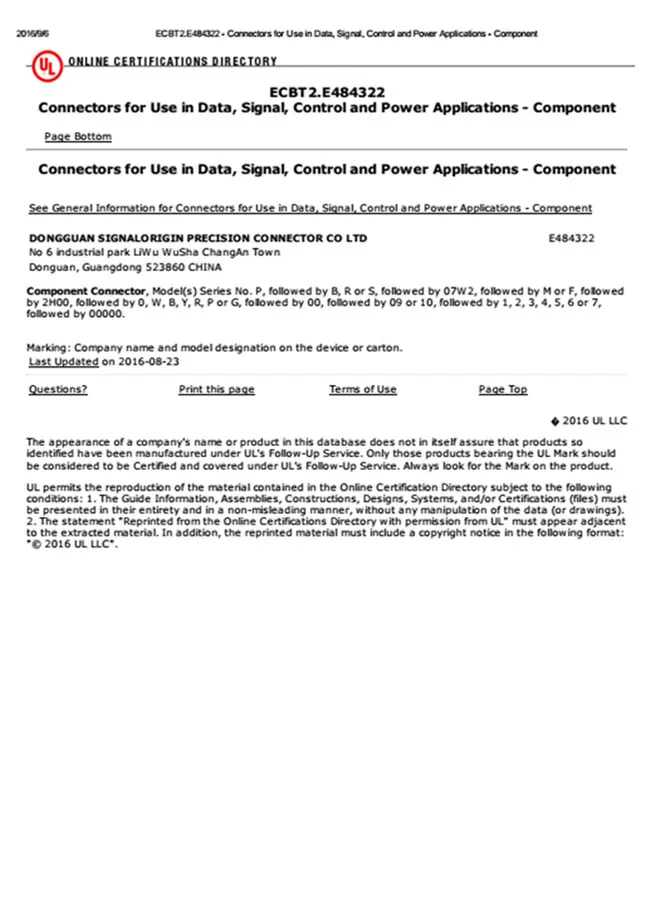

|Safety UL Certification||ISO9001:2008|
Signalorigin is a China leader in providing interconnect solutions into a wide range of markets and applications, from traditional connectors to the latest and next generation technical products.
Signalorigin is a manufacturer of electrical connectors and associated products for the electronics industry. The Signalorigin product line-up includes a full line of D-Sub connectors, hoods and accessories, as well as, high voltage contacts and accessories to be used with our connectors.

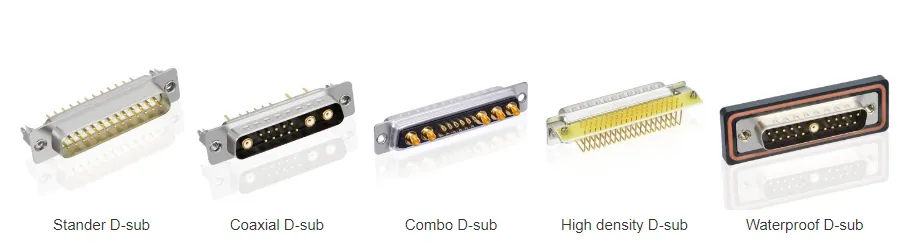

|Stander D-sub||Coaxial D-sub||Combo D-sub||High density D-sub||Waterproof D-sub|
