5W1 D-sub coaxial connector from SIGNALORIGIN is mixed signal, power, coax, high voltage contacts in a single connector. 5w1, which means there is 5 contacts where 1 of them is coaxial contact, 4 signals and 1coaxial. The high freqency contact current rating of coaxial contacts is 50 or 75 ohm.
|5W1 D-sub coaxial connector from SIGNALORIGIN|

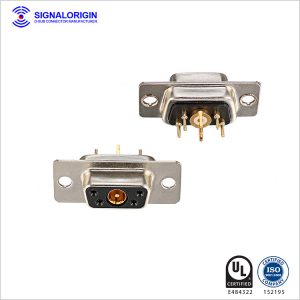

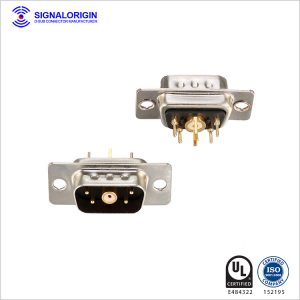

|Male 5W1 D-sub coaxial connector||Female 5W1 D-sub coaxial connector|
Specification of 5W1 D-sub coaxial connector
Materials and finish
- Shell: Steel or copper alloy material, Tin/Ni or Au finished
- Connector insulator: PBT thermoplastic, 30% Glass filled, UL 94V-O rated
- High frequency contact: Copper alloy material, gold plated
- High frequency contact current rating: 50 or 75 ohm
- The radio frequency : 0~3GHz
- Connector with signal contact current rating : 5A
- The working voltage: 300V
- High frequency contact resistance: 10 milliohms max
- Dielectric withstanding voltage: 1000 v AC for 1 minute
- Insulation resistance:2000 megaohms min
- Temperature rating: -55°C ~125°C
Drawing of 5W1 D-sub coaxial connector
