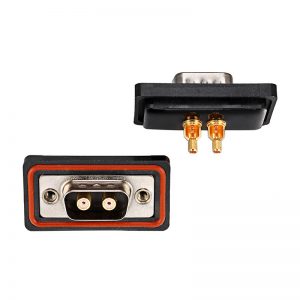

2w2 male d sub solder cup coaxial power connector

  • 2w2 male d sub coaxial power connector, solder cup

  • Meets IP67 Requirments,All contacts are machined copper alloy, full plated

  • Corrosion protected & corrosion resistant options

  • RoHS & UL Compliant versions availabl

Inquiry Now

Description

2w2 male d sub solder cup coaxial power connector. The waterproof connector is for applications where environmental considerations are key. All meet the water and dust ingress requirements of IP67 and Lane offers connectors with the option of corrosion protection or corrosion resistance. Signalorigin designed these connectors with sealed cable and sealed panel mount options. You may like 2w2 female d-sub connector.

Specification of 2w2 male d sub solder cup coaxial power connector

P/N  XHY-05-0449




2w2 male d sub solder cup coaxial power connector



PDF Drawing Download



Material Insulator material PBT thermoplastic, UL94-V0 fireproof rated
Insulator color Black/Blue (can be customized)
Contacts material Brass
Contact Plating Gold Plated, 1U”-30U”
Contact insulator material TEFLON
Shell Material Steel/SPCC-SD, Nickel or tin plated
Electrical Working Voltage 300V AC
Signal Contacts Current Rating 3A
Contact resistance 15mΩ Max
Coaxial contact impedance 50Ω+/-5Ω;75Ω+/-5Ω
Insulation resistance 2000MΩ Min.at 500v DC
Mechanical Dielectric Withstanding Voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin
Extraction force ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN
Durability 500 cycles
Operating temperature -55°C to +125°C

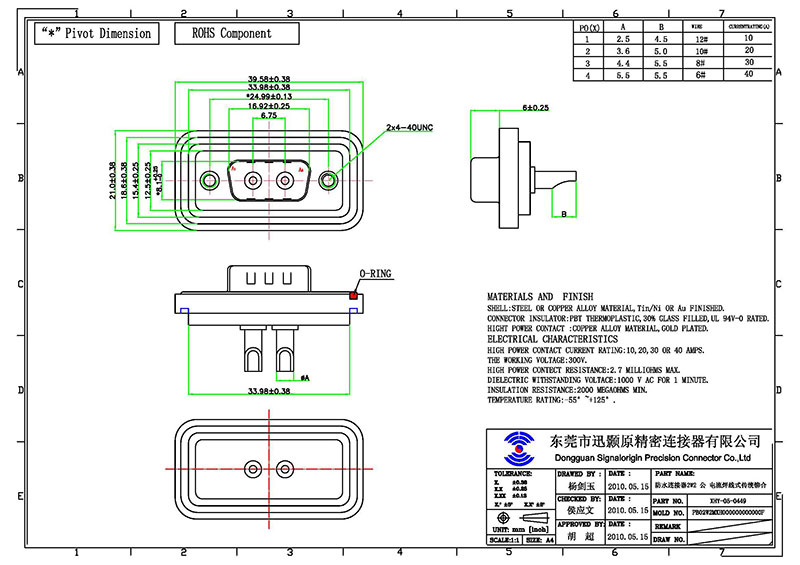

Drawing of 2w2 male d sub solder cup coaxial power connector

2w2 male d sub solder cup coaxial power connector
