24W7 D-sub connector from Signalorigin in China

24W7 D-sub connector provide the ideal solution for applications to require signal, high voltage, and high power connections within one connector. Power contacts from 10 amp to 40 amp current handling and signal contacts in various styles complete the product offering.

24W7 D-sub connector from Signalorigin in China

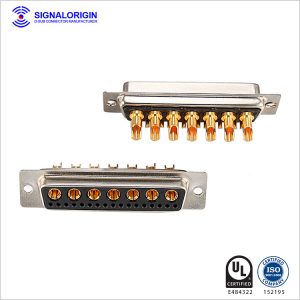

24W7 d sub solder cup power and signal connector 24W7 combo d sub female terminal connector
Male 24W7 D-sub connector Female 24W7 D-sub connector

Specification of 24W7 D-sub connector

Materials and finish

  • Shell: Steel or copper alloy material, Tin/Ni or Au finished
  • Connector insulator: PBT thermoplastic, 30% Glass filled, UL 94V-0 rated
  • High power contact: Copper alloy material, gold plated
  • Connector with signal contact material: Copper alloy, Gold plated
  • Fork: Copper alloy material, Ni plated

Electrical characteristics

  • High power contact current rating: 10, 20, 30, 40 A (can be customized)
  • Connector with signal contact current rating: 3 A
  • The working voltage: 300V
  • High power contact resistance: 2.7 milliohms max
  • Dielectric withstanding voltage: 1000 v AC for 1 minute
  • Insulation resistance:2000 megaohms min
  • Temperature rating: -55°C ~125°C

Drawing of 24W7 D-sub connector

24W7 D-sub connector from Signalorigin in China

Male 24W7 D-sub connector

24W7 D-sub connector from Signalorigin in China

Female 24W7 D-sub connector

Products Certifications

Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.

Safety UL Certification ISO9001:2008

Signalorigin is a China leader in providing interconnect solutions into a wide range of markets and applications, from traditional connectors to the latest and next generation technical products.

Signalorigin is a manufacturer of electrical connectors and associated products for the electronics industry. The Signalorigin product line-up includes a full line of D-Sub connectors, hoods and accessories, as well as, high voltage contacts and accessories to be used with our connectors.
