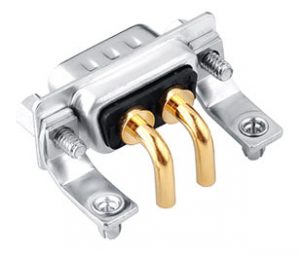

2W2 D-Sub Mixed Contact Connectors from Signalorigin. 2W2 connector is a 2W2 Combination D-sub Plug with Tin/Ni or Au finished steel shell, mixed-layout and PBT thermoplastic, 30% glass filled, UL94V-O rated insulator. Right angle contact termination. 2 Power positions. Applications in Computers & Computer Peripherals

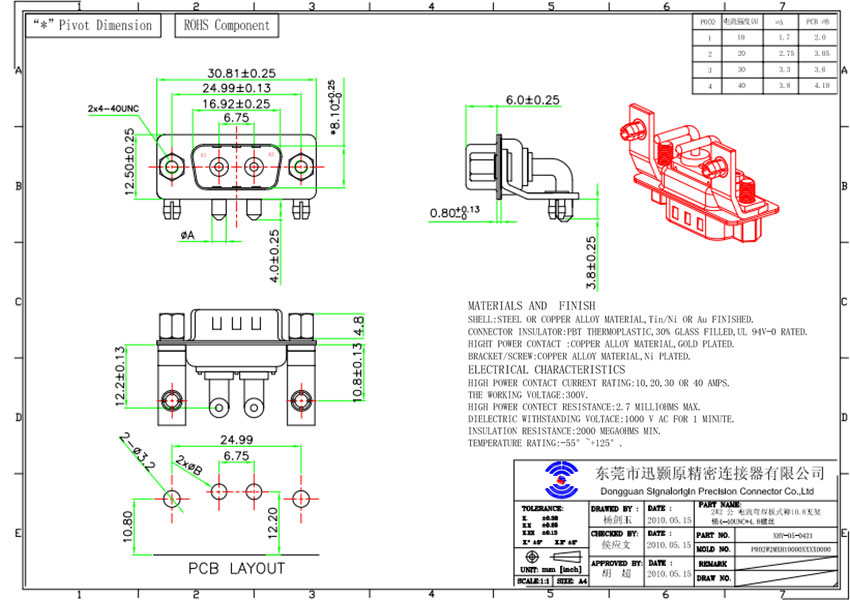

Specification of 2W2 D-Sub Mixed Contact Connectors
|PBT thermoplastic, 30% glass filled, UL94V-O rated
|Black/Blue (can be customized)
|Gold Plated, 1U”-30U”
|Steel or Copper ally, Tin/Ni or Au finished
|Copper alloy, Ni plated
|High power contacts current rating
|2.7 milliohms max
|2000 megaohms min
|Dielectric withstanding voltage
|1000V AC rms at 1 minute
|￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin
|￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN
|-55°C to +125°C
Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.
|Safety UL Certification
Signalorigin is a China leader in providing interconnect solutions into a wide range of markets and applications, from traditional connectors to the latest and next generation technical products.
Signalorigin is a manufacturer of electrical connectors and associated products for the electronics industry. The Signalorigin product line-up includes a full line of D-Sub connectors, hoods and accessories, as well as, high voltage contacts and accessories to be used with our connectors.
|High density D-sub
- 75 and 50 Ohm coaxial contacts
- High power contacts up to 40 A
- High voltage contacts up to 3 kV
Mixed Layout Connectors feature high abrasion and corrosion resistance, low thermal contact resistance, very good contact characteristics, excellent solder-ability, and even plating density. Depending on the application, solder pot, straight PCB, or crimp terminations are available, as well as insertion and removal tools for the crimp versions to ensure safe and reliable installation.
