9W4 male right angle coaxial d-sub connectors manufacturer in China. Combo d-sub connectors coaxial (50 and 75 Ohm) contacts within a variety of industry standard D shell sizes. This connector achieves space saving on PCB’s and I/O designs.
Our complete line of D-subminiature connectors ranges from standard D-sub connectors, High density D-sub Connectors, Combo D-sub connectors, High power d sub connector, Dual port d-sub, D-sub coaxial connector and waterproof D-sub connectors and more.

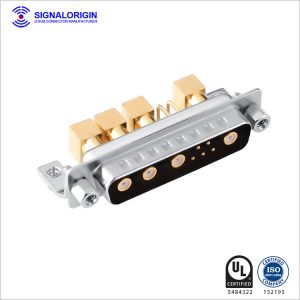

9W4 male right angle coaxial d-sub connectors
9w4 male righ angle coaxial conec d-sub connectors wholesale
9W4 male right angle coaxial d-sub connectors

Specification of 9W4 male right angle coaxial d-sub connectors

Materials and finish

  • Shell: Steel or copper alloy material, Tin/Ni or Au finished
  • Connector insulator: PBT thermoplastic, 30% Glass filled, UL 94V-O rated
  • High frequency contact: Copper alloy material, gold plated
  • Connector with signal contact material: Copper alloy, gold plated
  • Bracket/Screw: Copper alloy material, Ni plated

Electrical characteristics

  • High frequency contact current rating: 50 or 75 ohm
  • The radio frequency : 0~3GHz
  • Connector with signal contact current rating: 3A
  • The working voltage: 300V
  • High frequency contact resistance: 10 milliohms max
  • Dielectric withstanding voltage: 1000 v AC for 1 minute
  • Insulation resistance:2000 megaohms min
  • Temperature rating: -55°C ~125°C

Drawing of 9W4 male right angle coaxial d-sub connectors

9W4 male right angle coaxial d-sub connectors

9W4 male right angle coaxial d-sub connectors



9W4 male right angle coaxial d-sub connectors

9W4 female right angle coaxial d-sub connectors



Products Certifications

Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.

Safety UL Certification ISO9001:2008



Signalorigin is a China leader in providing interconnect solutions into a wide range of markets and applications, from traditional connectors to the latest and next generation technical products.

Signalorigin is a manufacturer of electrical connectors and associated products for the electronics industry. The Signalorigin product line-up includes a full line of D-Sub connectors, hoods and accessories, as well as, high voltage contacts and accessories to be used with our connectors.



25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
Stander D-sub Coaxial D-sub Combo D-sub High density D-sub Waterproof D-sub

  • 75 and 50 Ohm coaxial contacts
  • High power contacts up to 40 A
  • High voltage contacts up to 3 kV

Mixed Layout Connectors feature high abrasion and corrosion resistance, low thermal contact resistance, very good contact characteristics, excellent solder-ability, and even plating density. Depending on the application, solder pot, straight PCB, or crimp terminations are available, as well as insertion and removal tools for the crimp versions to ensure safe and reliable installation.
