M16 4 PIN male female waterproof circular electrical connectors

M16 4 PIN male female waterproof circular electrical connectors

  • available in various combinations of sizes, poles and genders

  • High degree of flexibility, thanks to individual adaptations according to your requirements

  • Corrosion protected & corrosion resistant options

  • RoHS & UL Compliant versions available

Description

SIGNALORIGIN is the M16 4 PIN male female waterproof circular electrical connectors manufacturer. Circular connectors are selected for ease of engagement and disengagement, their ability to conveniently house different types of contacts, their wide range of allowable contact voltages and currents, their ease of environmental sealing and their rugged mechanical performance.
SIGNALORIGIN offers an extensive range of Circular Connectors. You can choose from industrial and automation, Mil Spec, RJ45 and DIN types and we also offer a full range of circular connector accessories, including adaptors, backshells, inserts and seals.

SIGNALORIGIN connectors offer you the reliable and easy to install solution for your requirements. Whether you need to connect power, signal or data – or all combined – these connectors provide a customized solution for your application.

Specification of M16 4 PIN male female waterproof circular electrical connectors

P/N XHY

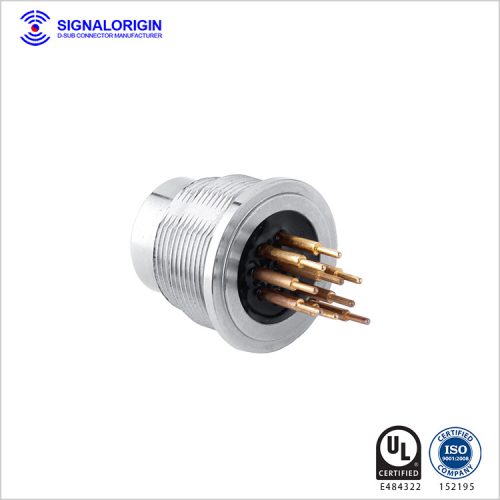

M16 4 PIN male female waterproof circular electrical connectors

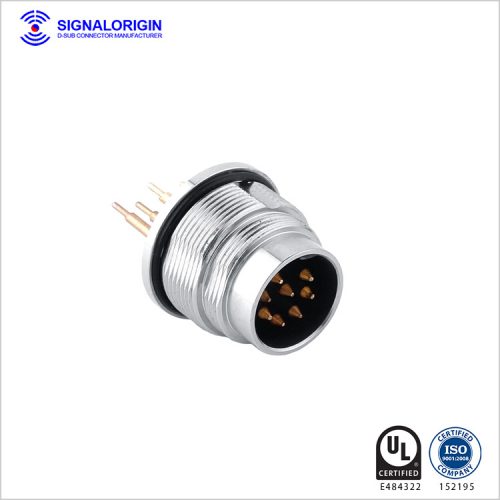

M16 4 PIN male female waterproof circular electrical connectors









PDF Drawing Download

     Material Insulator material Bakelite Black
Insulator color Pantone 299U  (can be customized)
Contacts material Copper Alloy, Silvery finished
Contact plating Silvery Plated, 1U”
Shell material Zinc alloy, Ni finished
Nut Copper alloy, Ni finished
     Electrical Working voltage 500V AC
High power contacts current rating 10A (customized)
Contact resistance 10 MILLIOHMS MAX
Insulation resistance 2000MΩ Min.at 500v DC
     Mechanical Dielectric withstanding voltage 1500V AC rms  at 1 minute
Insertion force ¢1.5 :0.6~2 N /Pin
Extraction force ¢1.5:0.2 N /Pin MIN
Durability 500 cycles
Operating temperature -40°C to +85°C

Drawing of M16 4 PIN male female waterproof circular electrical connectors
