Available in various combinations of sizes, poles and genders
High degree of flexibility, thanks to individual adaptations according to your requirements
Corrosion protected & corrosion resistant options
RoHS & UL Compliant versions available
PDF Drawing Download

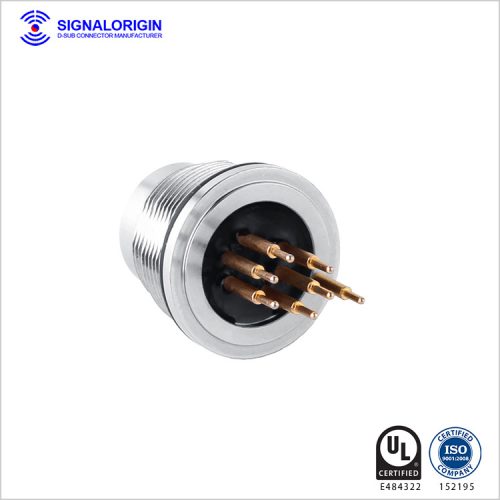

8 pin female waterproof industrial circular connectors
Description
SIGNALORIGIN is the 8 pin female waterproof industrial circular connectors manufacturer. This type of connector is designed with a circular interface and housing to quickly and easily connect and disconnect signal, power, and optical circuits. Circular connectors are often preferred in military, aerospace, and industrial applications: these can be connected and disconnected without the use of coupling tools such as torque wrenches. SIGNALORIGIN’s circular connectors offer rugged solutions that have been engineered for reliable performance in a wide variety of harsh environment applications.
SIGNALORIGIN connectors offer you the reliable and easy to install solution for your requirements. Whether you need to connect power, signal or data – or all combined – these connectors provide a customized solution for your application.
Specification of 8 pin female waterproof industrial circular connectors
P/N | XHY | ||
---|---|---|---|
PDF Drawing Download |
Material | Insulator material | PBT 4130, UL94-V0 fireproof rated |
Insulator color | Gray (can be customized) | ||
Contacts material | Copper 3604 | ||
Contact plating | Gold Plated, 1U” | ||
Electrical | Working voltage | 120V AC | |
Current rating | 3A (customized) | ||
Contact resistance | 30mΩ Max | ||
Insulation resistance | 1000MΩ Min. | ||
Mechanical | Dielectric withstanding voltage | 750V AC rms at 1 minute | |
Insertion force | ¢1.0 :45 N MAX | ||
Extraction force | ¢1.0:1.8N MIN | ||
Durability | 500 cycles | ||
Operating temperature | -40°C to +125°C |
Drawing of 8 pin female waterproof industrial circular connectors
Variety of D-sub connectors
![]() |
![]() |
![]() |
![]() |
![]() |
||||
Stander D-sub | Coaxial D-sub | Combo D-sub | High density D-sub | Waterproof D-sub |
Products Certifications
Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.
![]() |
![]() |
Safety UL Certification | ISO9001:2008 |
