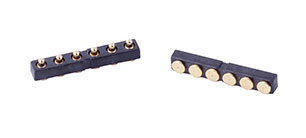

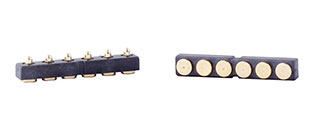

Surface mount spring loaded connector manufacturer

  • Barrel & plunger: Brass/Be-Cu/Phosphor bronze

  • Plating: Gold plated (According to customer requirements)

  • Spring: SUS/SWP

  • Life test: 20,000~1000,000 cycles

  • Rated current & voltage: DC12V; 1A~5A,

Description

SIGNALORIGIN is the surface mount spring loaded connector manufacturer. Each spring pin is rated for 9 amps at a 10°C temperature rise with a contact resistance of less than 20 mili-ohms. Pogo pin connector (SLC) that is aimed at tough applications in rough environments. They are ideal for applications where the connector will experience side loading, great variation in vertical engagement, high levels of shock and vibration, high cycle counts and extremes of temperature.

Specification of surface mount spring loaded connector manufacturer

 P/N XHY
surface mount spring loaded connector manufacturer

surface mount spring loaded connector manufacturer











PDF Drawing Download

Material Contacts material Brass
Contact Plating Gold Plated, 1U”-30U”
Contact insulator material TEFLON
Electrical Working Voltage 250V AC
Contact resistance 3mΩ
Coaxial contact impedance 50Ω;75Ω
The radio frequency range 0~4ghz.
Voltage standing wave ratio 1.3max
Insulation resistance 2000MΩ Min
Mechanical Dielectric Withstanding Voltage 750V AC rms  at 1 minute
Insertion force 2-7 N /Pin
Extraction force 0.5 N /Pin
Durability 500 cycles
Operating temperature -55°C to +125°C



Variety of D-sub connectors

25 pin male d sub connector with boardlocks 13w3 male d sub coaxial connector wholesale Combo D-SUB 17w5Connector welding for cable High density right angle 78 pin d sub connector 21W1 male d-sub coaxial waterproof connector
Stander D-sub Coaxial D-sub Combo D-sub High density D-sub Waterproof D-sub

Products Certifications

Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.

Safety UL Certification ISO9001:2008
