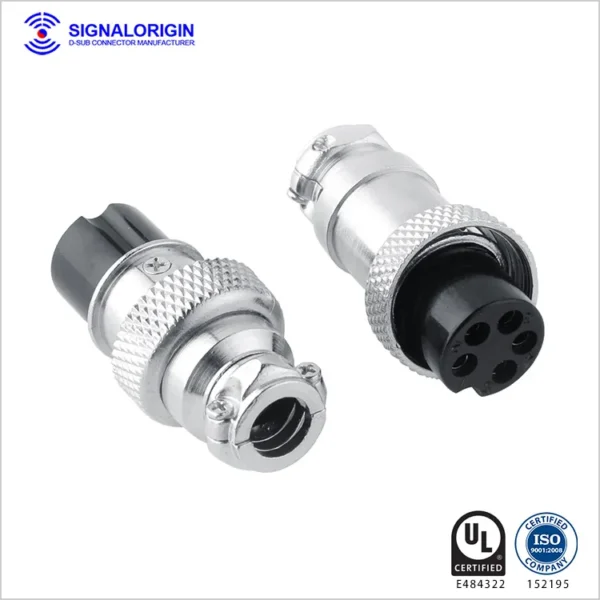

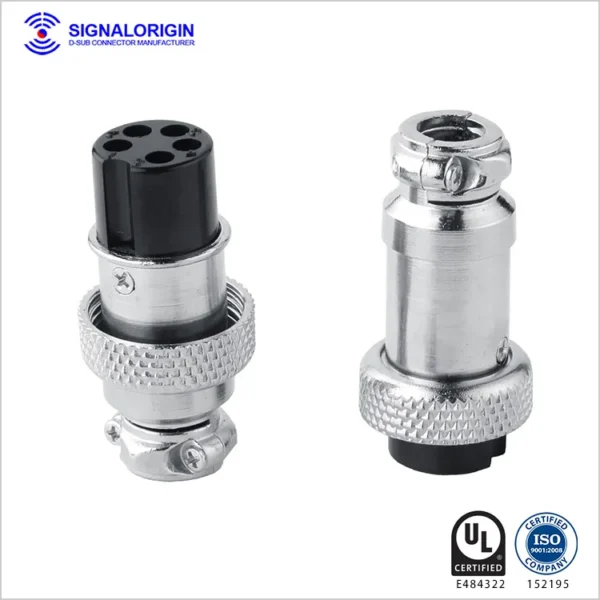

SIGNALORIGIN Is A Professional Manufacturer Of M16 5-pin Waterproof Circular Military Connectors, Engineered For Secure And Efficient Power And Signal Transmission In Harsh Environments. These Connectors Are Widely Used In Military Equipment, Aviation Systems, Marine Electronics, Communication Devices, And Industrial Machinery.
The M16 Series Supports Mixed-signal Transmission — Including Power, Control, And Data — Making It Ideal For Complex Electronic Systems. With Rugged Construction, High Pin Density, And IP-rated Waterproof Sealing, SIGNALORIGIN Connectors Ensure Reliable Performance For Mission-critical Applications Where Durability And Precision Matter Most.
| Material | Insulator material | Bakelite Black |
| Insulator color | Pantone 299U (can be customized) | |
| Contacts material | Copper Alloy, Silvery finished | |
| Contact plating | Silvery Plated, 1U” | |
| Shell material | Zinc alloy, Ni finished | |
| Nut | Copper alloy, Ni finished | |
| Electrical | Working voltage | 500V AC |
| Current rating | 10A (customized) | |
| Contact resistance | 10 MILLIOHMS MAX | |
| Insulation resistance | 2000MΩ Min. | |
| Mechanical | Dielectric withstanding voltage | 1500V AC rms at 1 minute |
| Insertion force | ￠1.0 :45 N MAX | |
| Extraction force | ￠1.0:1.8N MIN | |
| Durability | 500 cycles | |
| Operating temperature | -40°C to +85°C |
