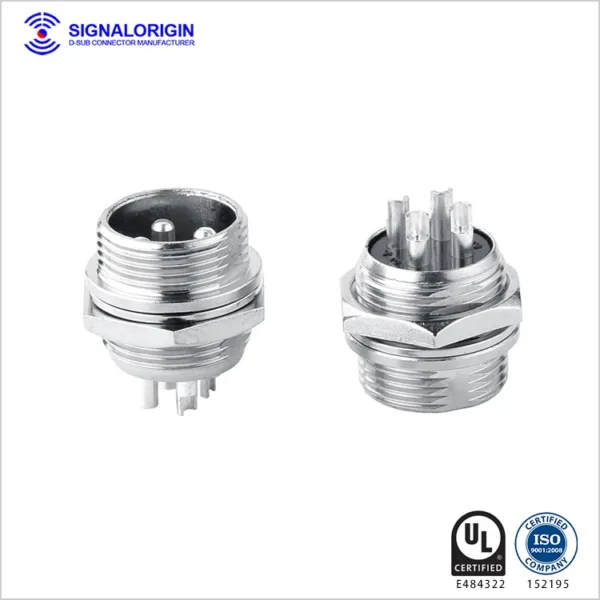

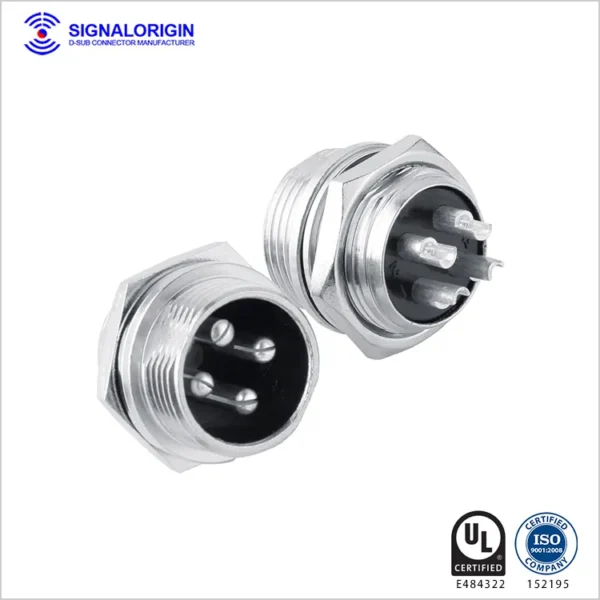

SIGNALORIGIN Is A Trusted Manufacturer Of M16 4-pin Waterproof Circular Industrial Electrical Connectors, Designed For Robust And Secure Connectivity In Harsh Environments. Ideal For Power, Signal, And Data Transmission, These IP-rated Connectors Ensure Long-term Performance In Industrial Automation, Smart Infrastructure, And Communication Systems.
In Addition To M16 Solutions, We Also Provide Shielded M8 And M12 Circular Connectors Compatible With Common Fieldbus Protocols And Ethernet-based Networks. SIGNALORIGIN Connectors Are Easy To Install, Highly Durable, And Support Reliable Data Communication — Making Them A Smart Choice For Demanding Industrial Applications.
SIGNALORIGIN Is A Trusted Manufacturer Of M16 4-pin Waterproof Circular Industrial Electrical Connectors, Designed For Robust And Secure Connectivity In Harsh Environments. Ideal For Power, Signal, And Data Transmission, These IP-rated Connectors Ensure Long-term Performance In Industrial Automation, Smart Infrastructure, And Communication Systems.
In Addition To M16 Solutions, We Also Provide Shielded M8 And M12 Circular Connectors Compatible With Common Fieldbus Protocols And Ethernet-based Networks. SIGNALORIGIN Connectors Are Easy To Install, Highly Durable, And Support Reliable Data Communication — Making Them A Smart Choice For Demanding Industrial Applications.
| Material | Insulator material | Bakelite Black |
| Insulator color | Pantone 299U (can be customized) | |
| Contacts material | Copper Alloy, Silvery finished | |
| Contact plating | Silvery Plated, 1U” | |
| Shell material | Zinc alloy, Ni finished | |
| Nut | Copper alloy, Ni finished | |
| Electrical | Working voltage | 500V AC |
| High power contacts current rating | 10A (customized) | |
| Contact resistance | 10 MILLIOHMS MAX | |
| Insulation resistance | 2000MΩ Min.at 500v DC | |
| Mechanical | Dielectric withstanding voltage | 1500V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -40°C to +85°C |
