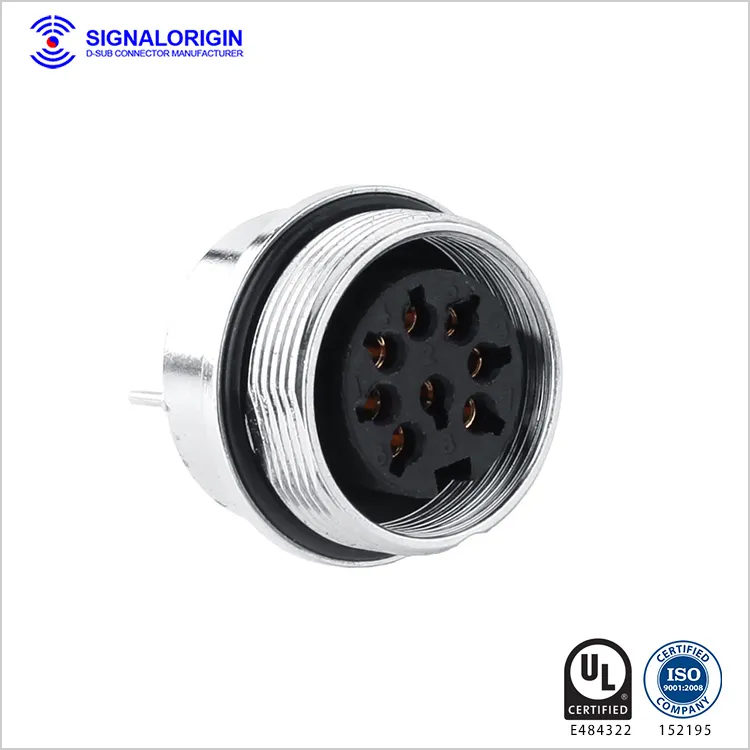

Signalorigin Is A Specialized Manufacturer Of 8-Pin Female Waterproof Industrial Circular Connectors, Engineered For Quick, Secure, And Tool-Free Connection Of Power, Signal, And Data Lines. Featuring A Robust Circular Interface And Sealed Housing, These Connectors Deliver Outstanding Durability And Environmental Protection, Making Them Ideal For Military, Aerospace, Transportation, Factory Automation, And Outdoor Equipment Applications.
With Ip-Rated Waterproof Performance, Signalorigin’S Circular Connectors Are Designed To Withstand Shock, Vibration, Dust, And Moisture—Ensuring Stable Electrical Connectivity In The Most Demanding Conditions. Whether You Need To Connect Power, Signal, Or Both, These Connectors Provide A Custom-Fit, Easy-To-Install Solution Tailored To Your Application Needs.
| Material | Insulator material | PBT 4130, UL94-V0 fireproof rated |
| Insulator color | Gray (can be customized) | |
| Contacts material | Gray (can be customized) | |
| Contact plating | Gold Plated, 1U” | |
| Electrical | Working voltage | 120V AC |
| Current rating | 3A (customized) | |
| Contact resistance | 30mΩ Max | |
| Insulation resistance | 1000MΩ Min. | |
| Mechanical | Dielectric withstanding voltage | 750V AC rms at 1 minute |
| Insertion force | ￠1.0 :45 N MAX | |
| Extraction force | ￠1.0:1.8N MIN | |
| Durability | 500 cycles | |
| Operating temperature | -40°C to +125°C |
