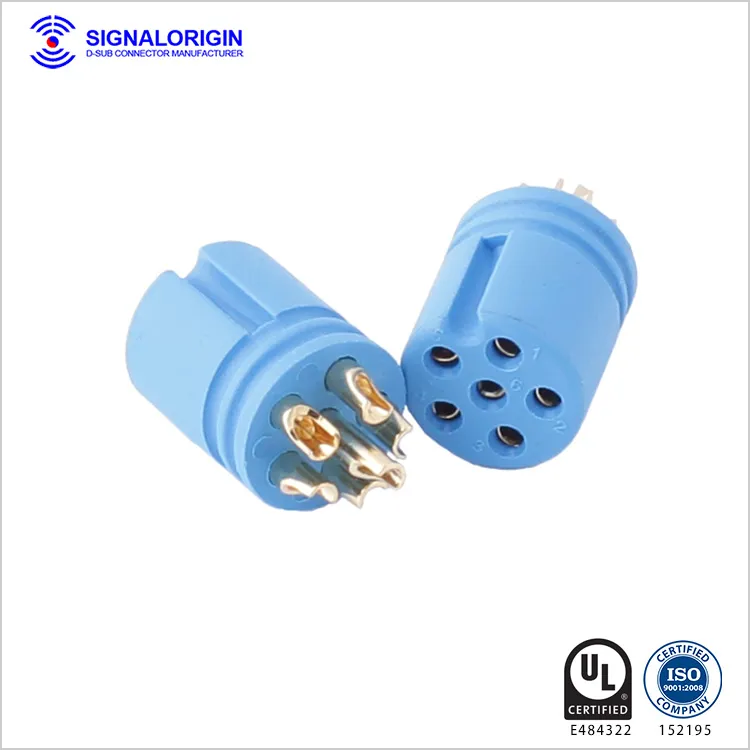

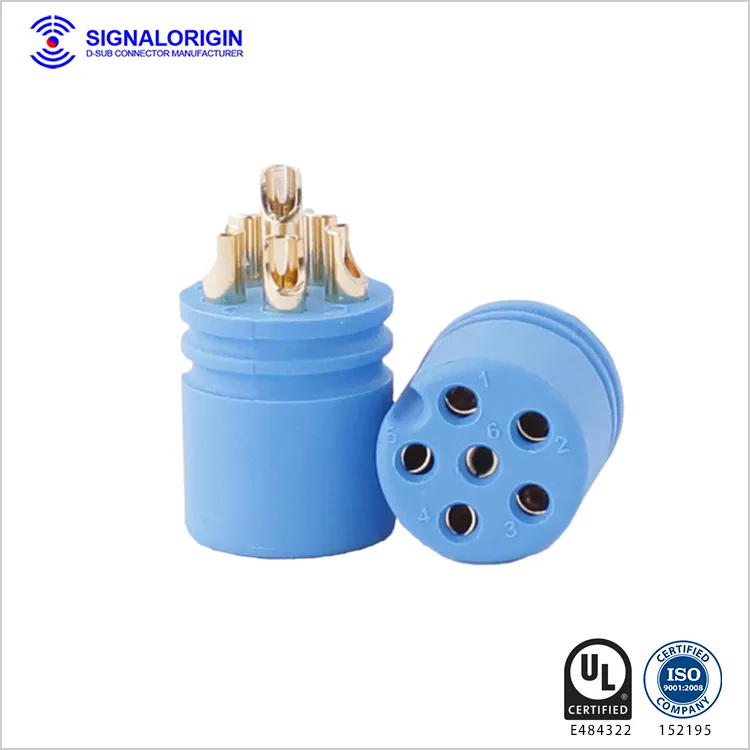

Signalorigin Offers Wholesale 6-Pin Female Circular Waterproof Electrical Connectors, Designed To Deliver Secure, High-Performance Connections For Power, Signal, Or Data Transmission—Or All Combined In A Single Interface. With Rugged Waterproof Sealing And Durable Construction, These Connectors Are Ideal For Demanding Environments That Require Reliable Electrical Performance And Quick, Tool-Free Installation.
Perfect For Applications In Industrial Automation, Outdoor Lighting Systems, Transportation, Medical Equipment, And Communication Devices, Signalorigin’S Circular Connectors Are Fully Customizable To Meet Specific System Requirements. As Your Trusted Circular Connector Supplier, We Provide Tailored Interconnect Solutions For Both Standard And Complex Integration Needs.
|
Material |
Insulator material | PBT 4130, UL94-V0 fireproof rated |
| Insulator color | Gray (can be customized) | |
| Contacts material | Copper 3604 | |
| Contact plating | Gold Plated, 1U” | |
|
Electrical |
Working voltage | 120V AC |
| Current rating | 3A (customized) | |
| Contact resistance | 30mΩ Max | |
| Insulation resistance | 1000MΩ Min. | |
|
Electrical |
Dielectric withstanding voltage | 750V AC rms at 1 minute |
| Insertion force | ￠1.0 :45 N MAX | |
| Extraction force | ￠1.0:1.8N MIN | |
| Durability | 500 cycles | |
| Operating temperature | -40°C to +125°C |
