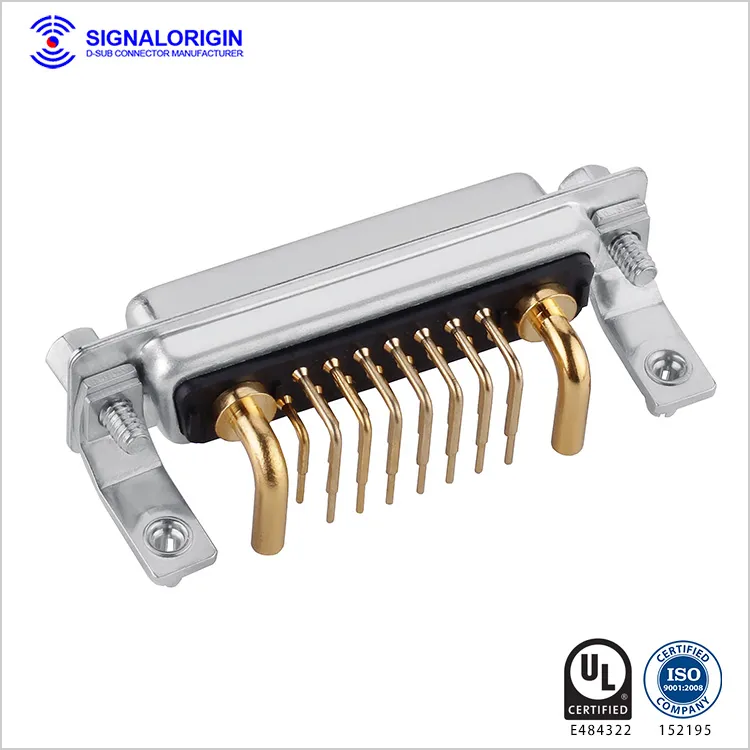

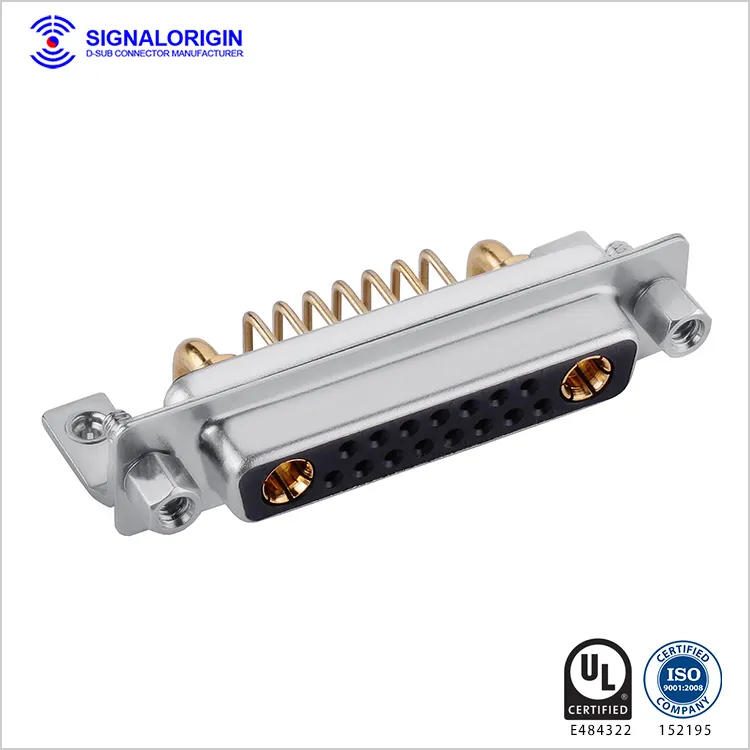

Signalorigin Is A Trusted Manufacturer In China Of 17w2 D-Sub Female Connectors In Right-Angle Configuration, Specially Designed For Applications Requiring Combined Power And Signal Transmission. The 17w2 Connector Features 2 High-Current Power Contacts And 15 Signal Contacts. Power Contacts Support Current Ratings From 10a To 40a, With Variations Based On Terminal Size To Meet Different Application Needs.
Our D-Subminiature Connector Portfolio Offers Excellent Flexibility, Durability, And Sealing, Making It Ideal For Industrial Control Systems, Power Supplies, Automation Equipment, And Communication Devices. Backed By Ul Certification And Iso 9001 Standards, Signalorigin Provides Fast Delivery (3–7 Days), Free Samples (3–5 Sets), And Full Customization To Help Customers Find Cost-Effective And Reliable Connector Solutions.
Signalorigin Is A Trusted Manufacturer In China Of 17w2 D-Sub Female Connectors In Right-Angle Configuration, Specially Designed For Applications Requiring Combined Power And Signal Transmission. The 17w2 Connector Features 2 High-Current Power Contacts And 15 Signal Contacts. Power Contacts Support Current Ratings From 10a To 40a, With Variations Based On Terminal Size To Meet Different Application Needs.
Our D-Subminiature Connector Portfolio Offers Excellent Flexibility, Durability, And Sealing, Making It Ideal For Industrial Control Systems, Power Supplies, Automation Equipment, And Communication Devices. Backed By Ul Certification And Iso 9001 Standards, Signalorigin Provides Fast Delivery (3–7 Days), Free Samples (3–5 Sets), And Full Customization To Help Customers Find Cost-Effective And Reliable Connector Solutions.
| Material | Insulator material | PBT thermoplastic, UL94-V0 fireproof rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Brass | |
| Contact plating | Gold Plated, 1U”-30U” | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
| Electrical | Working voltage | 300V AC |
| High power contacts current rating | 10A-40A(customized) | |
| Signal contacts current rating | 5A | |
| Contact resistance | 2.7 milliohms max | |
| Insulation resistance | 2000MΩ Min.at 500v DC | |
| Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
