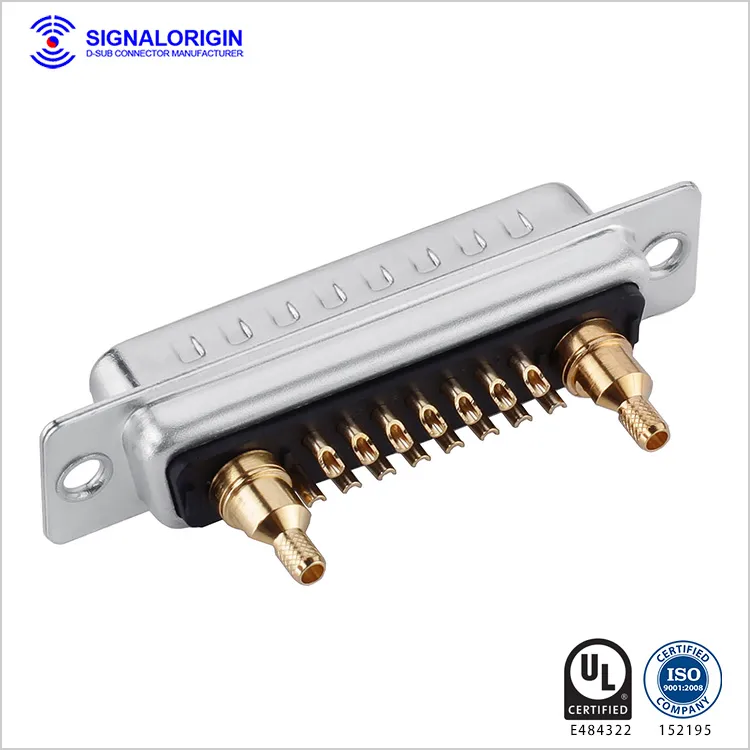

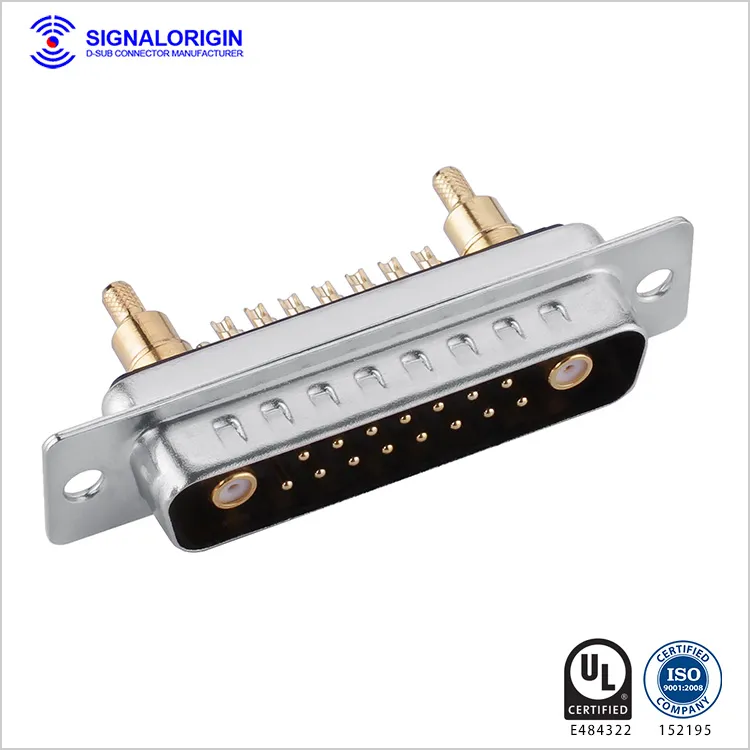

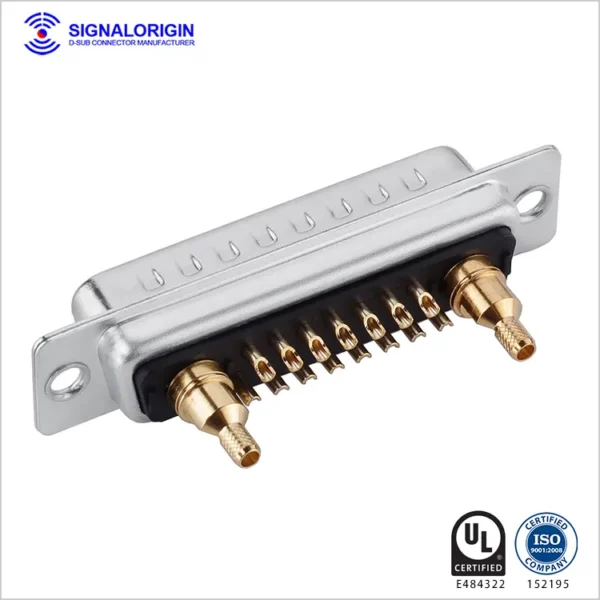

SIGNALORIGIN Is A Reliable Supplier Of 17W2 D-sub Coaxial Male Connectors With Solder Cup Termination, Engineered For Mission-critical And High-performance Applications. This Mixed Layout Connector Features Gold-over-nickel Plated Machined Contacts, Flame-retardant Glass-filled PBT Insulators, And A Robust Nickel Or Tin-plated Steel Shell. With 2 Coaxial Contacts And 15 Signal Contacts, It Supports RF Transmission (50Ω/75Ω) Along With Data And Power In A Single Compact Interface—ideal For Telecommunication Systems, Military Equipment, Industrial Controls, And Video Applications.
Our D-subminiature Series Offers Flexibility, Durability, And Sealability, With Support For Frequencies Up To 3GHz. Certified To UL And ISO 9001 Quality Standards, We Offer 3–5 Free Samples, Short Lead Times (3–7 Days Delivery), And Full Customization Options. SIGNALORIGIN Delivers Efficient, Economical D-sub Solutions Tailored To Your Most Demanding Requirements.
| Material | Insulator material | PBT thermoplastic, 30% Glass filled, UL 94V-O rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Copper alloy material | |
| Contact plating | Gold flash over nickel, 1U”-30U” | |
| Shell material | Steel or copper alloy material, Tin/Ni or Au finished | |
| Electrical | High frequency contact current rating | 50 or 75 ohm |
| The radio frequency | 0~3GHz | |
| Connector with signal contact current rating | 5 A | |
| The working voltage | 300V | |
| High frequency contact resistance | 10 milliohms max | |
| Mechanical | Dielectric withstanding voltage | 1000 v AC for 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
