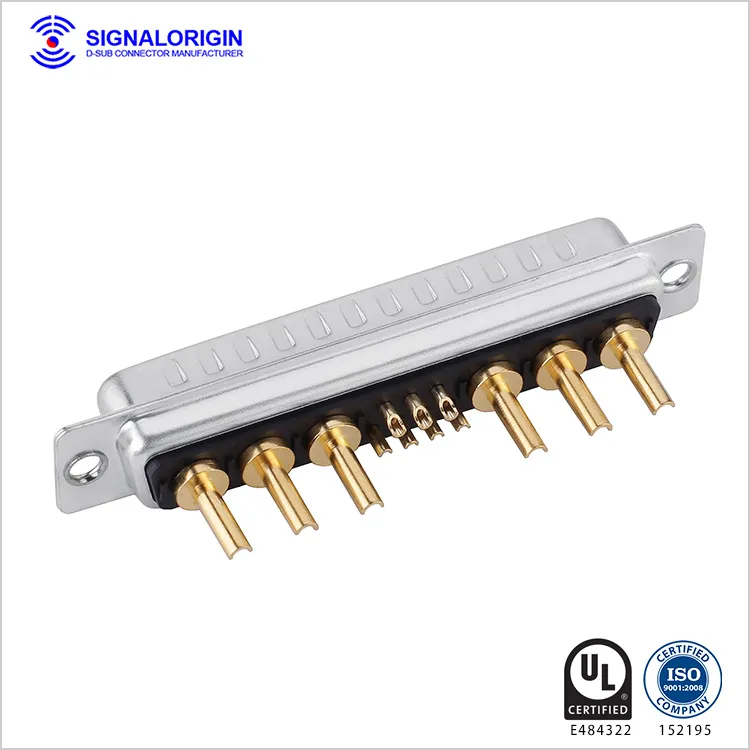

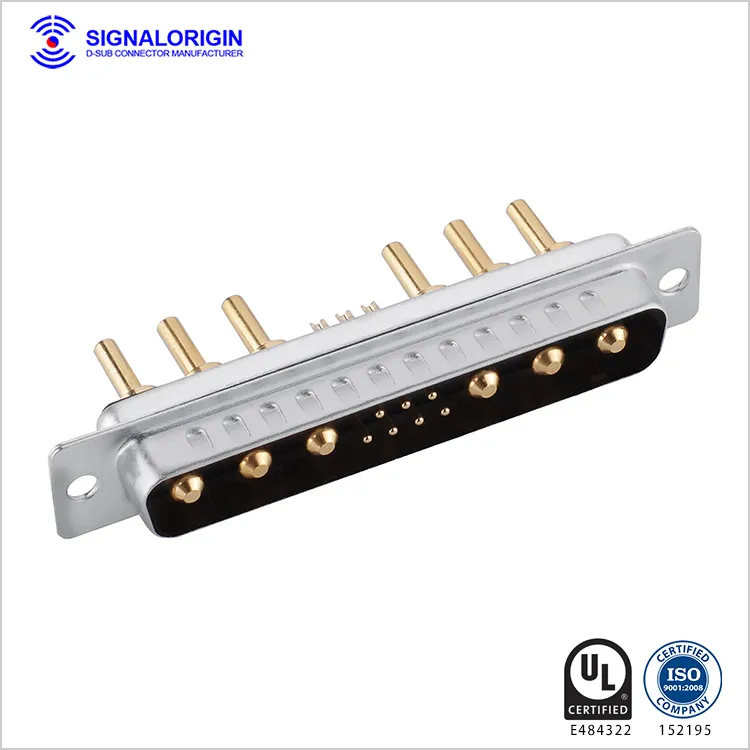

Signalorigin Is A Leading Manufacturer Of 13w6 D-Sub High Current Connectors With Long Solder Cup Terminals And Right-Angle Combo Design. The 13w6 D-Sub Connector Features 6 Power Contacts And 7 Signal Contacts, Offering A Hybrid Solution For Transmitting Both Power And Signal Through A Single Interface. Power Pins Are Available With Current Ratings From 10a To 40a, Differentiated Only By Terminal Size For Flexible Application Requirements.
Engineered With Durability And Versatility In Mind, Our Combo D-Sub Connectors Are Ideal For Industrial Equipment, Communication Systems, Power Distribution Units, And Automation Control. Backed By Ul Certification And Iso 9001 Quality Standards, Signalorigin Ensures Consistent Performance, Custom Options, And Cost-Effective Solutions Tailored To Complex System Needs.
Signalorigin Is A Leading Manufacturer Of 13w6 D-Sub High Current Connectors With Long Solder Cup Terminals And Right-Angle Combo Design. The 13w6 D-Sub Connector Features 6 Power Contacts And 7 Signal Contacts, Offering A Hybrid Solution For Transmitting Both Power And Signal Through A Single Interface. Power Pins Are Available With Current Ratings From 10a To 40a, Differentiated Only By Terminal Size For Flexible Application Requirements.
Engineered With Durability And Versatility In Mind, Our Combo D-Sub Connectors Are Ideal For Industrial Equipment, Communication Systems, Power Distribution Units, And Automation Control. Backed By Ul Certification And Iso 9001 Quality Standards, Signalorigin Ensures Consistent Performance, Custom Options, And Cost-Effective Solutions Tailored To Complex System Needs.
| Material | Insulator material | PBT thermoplastic, UL94-V0 fireproof rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Brass | |
| Contact plating | Gold Plated, 1U”-30U” | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
| Electrical | Working voltage | 300V AC |
| High power contacts current rating | 10A-40A(customized) | |
| Signal contacts current rating | 3A | |
| Contact resistance | 2.7 milliohms max | |
| Insulation resistance | 2000MΩ Min.at 500v DC | |
| Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
