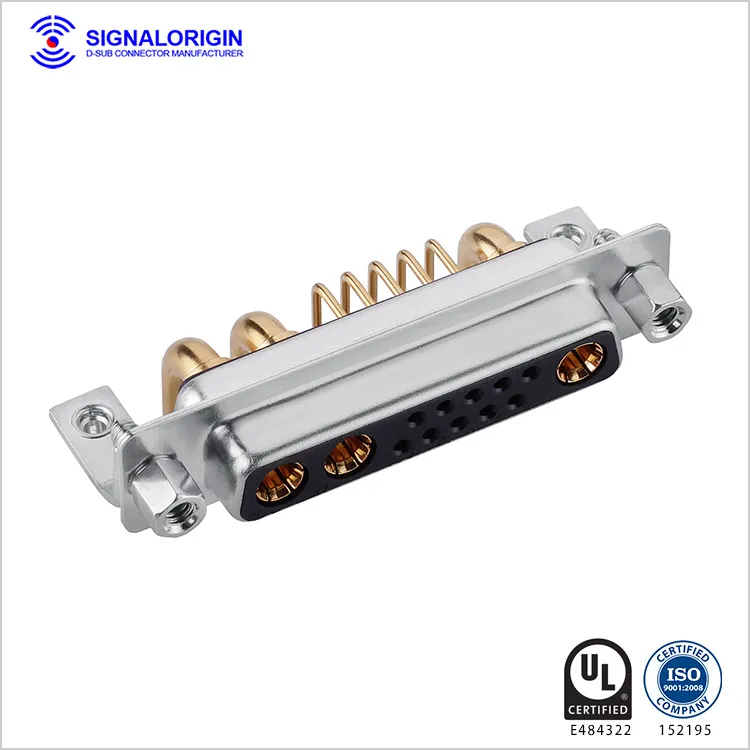

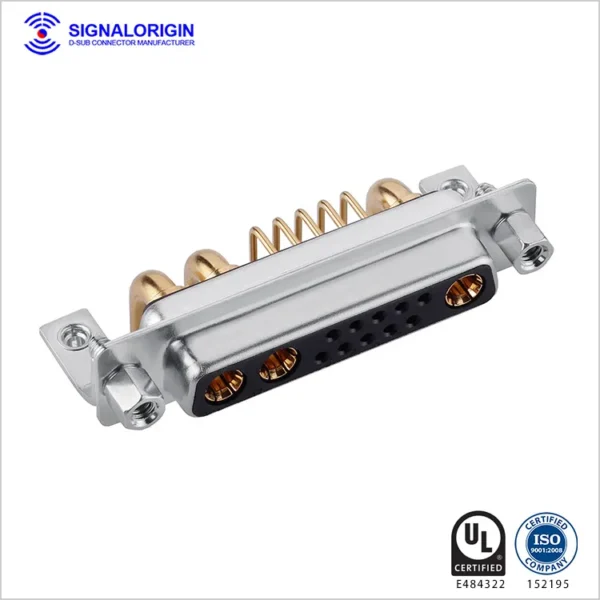

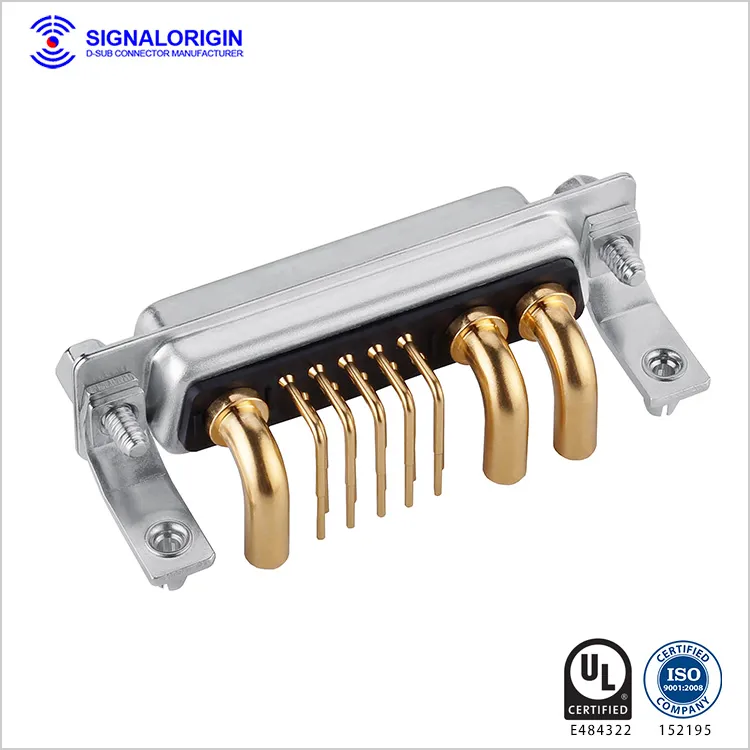

Signalorigin Is A Trusted Manufacturer Of High-Current 13w3 D-Sub Female Connectors In Right-Angle Type, Designed For Applications Requiring Combined Power And Signal Transmission. The 13w3 D-Sub Connector Includes 3 Power Contacts And 10 Signal Contacts, With Power Pins Supporting Customizable Current Ratings Of 10a, 20a, 30a, Or 40a — All With Different Terminal Sizes For Flexibility Across Industries.
Engineered For Durability, Sealability, And High Performance, Our D-Sub Connectors Are Widely Used In Power Supplies, Industrial Automation, Communication Systems, And Medical Equipment. Certified By Ul And Compliant With Iso 9001 Standards, We Offer Fast Delivery (Within 3–7 Days), Free Samples (3–5 Sets), And Professional Customer Support. Custom Sizes And Configurations Are Available To Meet Your Specific Project Needs.
Signalorigin Is A Trusted Manufacturer Of High-Current 13w3 D-Sub Female Connectors In Right-Angle Type, Designed For Applications Requiring Combined Power And Signal Transmission. The 13w3 D-Sub Connector Includes 3 Power Contacts And 10 Signal Contacts, With Power Pins Supporting Customizable Current Ratings Of 10a, 20a, 30a, Or 40a — All With Different Terminal Sizes For Flexibility Across Industries.
Engineered For Durability, Sealability, And High Performance, Our D-Sub Connectors Are Widely Used In Power Supplies, Industrial Automation, Communication Systems, And Medical Equipment. Certified By Ul And Compliant With Iso 9001 Standards, We Offer Fast Delivery (Within 3–7 Days), Free Samples (3–5 Sets), And Professional Customer Support. Custom Sizes And Configurations Are Available To Meet Your Specific Project Needs.
| Material | Insulator material | PBT thermoplastic, UL94-V0 fireproof rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Brass | |
| Contact plating | Gold Plated, 1U”-30U” | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
| Electrical | Working voltage | 300V AC |
| High power contacts current rating | 10A-40A(customized) | |
| Signal contacts current rating | 5A | |
| Contact resistance | 2.7 milliohms max | |
| Insulation resistance | 2000MΩ Min.at 500v DC | |
| Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
