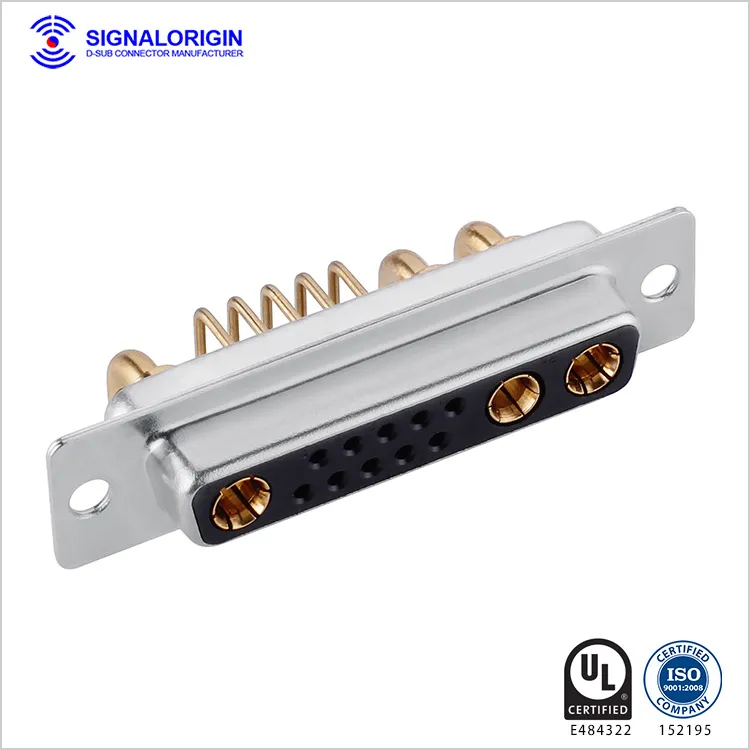

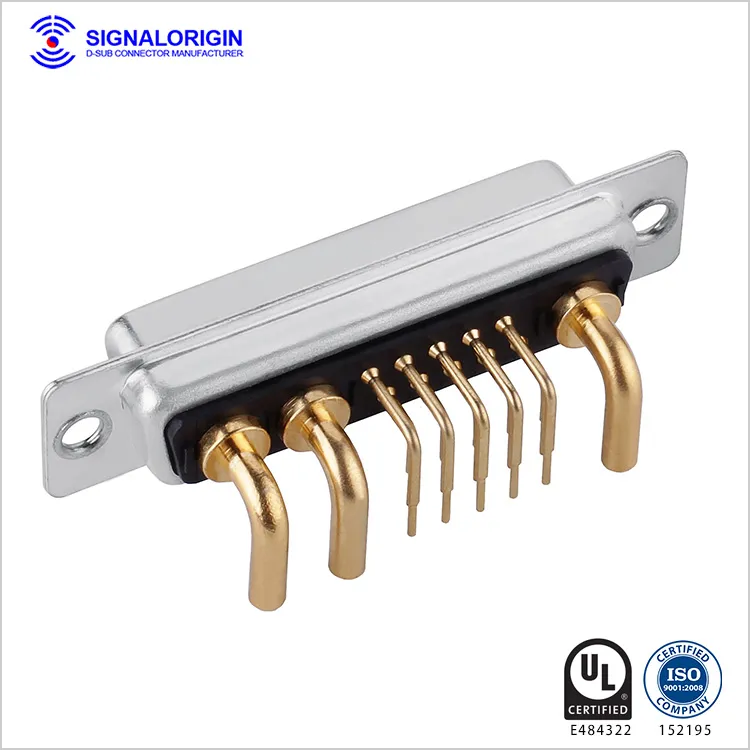

Signalorigin Is A Professional Manufacturer Of 13w3 D-Sub Female Right Angle Connectors, Offering Reliable Solutions That Combine Power And Signal In A Compact Design. The 13w3 D-Sub Features 3 High-Current Power Contacts And 10 Signal Contacts, Ideal For Applications Requiring Both Power Delivery And Data Transmission. Power Pins Support Current Ratings Of 10a To 40a, Customizable To Meet Diverse Industrial Demands.
Our D-Subminiature Connectors Are Engineered For High Flexibility, Durability, And Sealing Performance, Making Them Perfect For Industrial Control Systems, Power Supplies, Communication Equipment, And Medical Devices. With Ul Safety Certification, Iso 9001 Quality Assurance, And Fast Delivery (3–7 Days), We Ensure Reliable Quality And Excellent Customer Support. Free Samples (3–5 Sets) Are Available Upon Request.
Signalorigin Is A Professional Manufacturer Of 13w3 D-Sub Female Right Angle Connectors, Offering Reliable Solutions That Combine Power And Signal In A Compact Design. The 13w3 D-Sub Features 3 High-Current Power Contacts And 10 Signal Contacts, Ideal For Applications Requiring Both Power Delivery And Data Transmission. Power Pins Support Current Ratings Of 10a To 40a, Customizable To Meet Diverse Industrial Demands.
Our D-Subminiature Connectors Are Engineered For High Flexibility, Durability, And Sealing Performance, Making Them Perfect For Industrial Control Systems, Power Supplies, Communication Equipment, And Medical Devices. With Ul Safety Certification, Iso 9001 Quality Assurance, And Fast Delivery (3–7 Days), We Ensure Reliable Quality And Excellent Customer Support. Free Samples (3–5 Sets) Are Available Upon Request.
| Material | Insulator material | PBT thermoplastic, UL94-V0 fireproof rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Brass | |
| Contact plating | Gold Plated, 1U”-30U” | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
| Electrical | Working voltage | 300V AC |
| High power contacts current rating | 10A-40A(customized) | |
| Signal contacts current rating | 5A | |
| Contact resistance | 2.7 milliohms max | |
| Insulation resistance | 2000MΩ Min.at 500v DC | |
| Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
