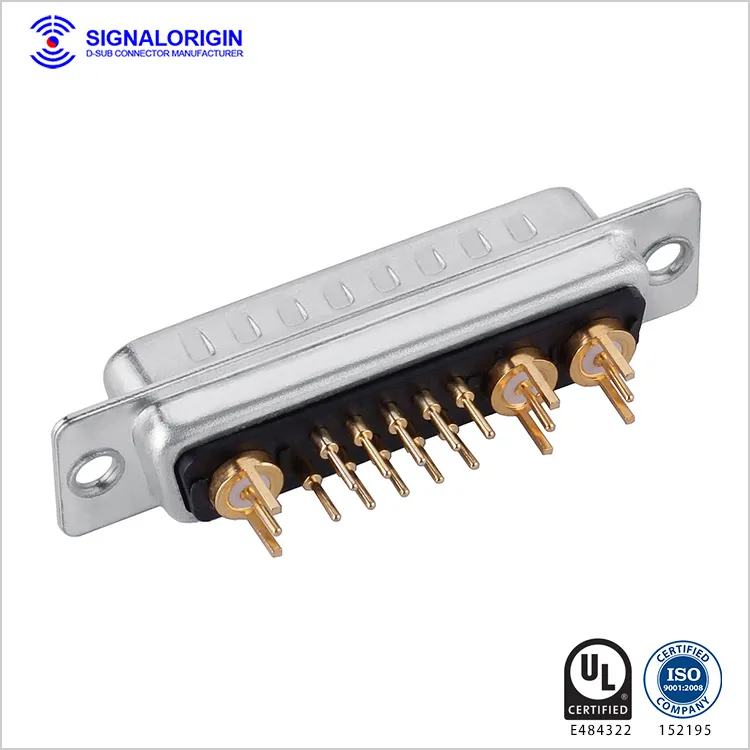

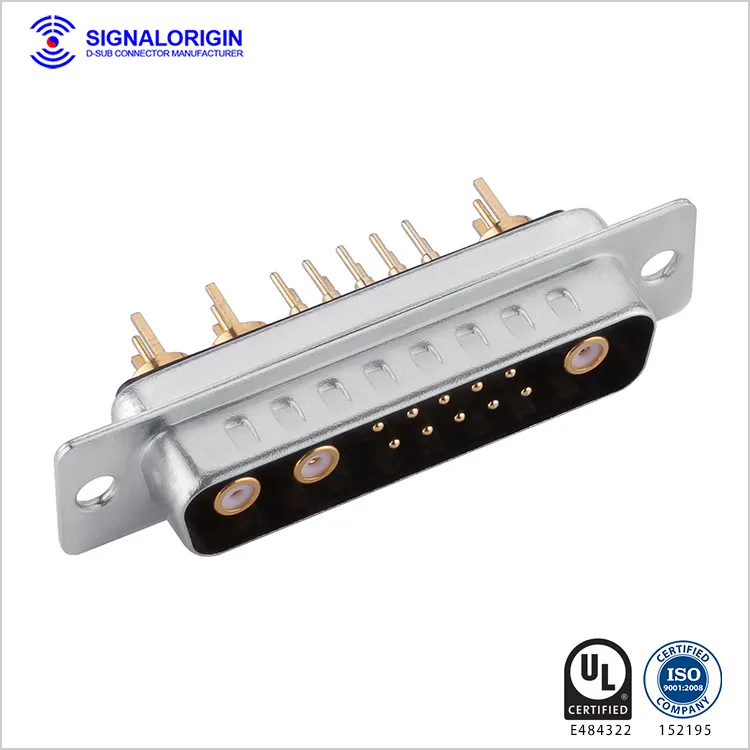

SIGNALORIGIN Is A Leading 13W3 Coaxial Male D-Sub Connector Manufacturer Based In China, Specializing In Mixed Layout Connectors That Combine Coaxial (50Ω Or 75Ω) And Signal Contactswithin A Standard D-sub Shell. This Compact And Efficient Design Is Ideal For Applications Requiring Integrated Power, Signal, And RF Transmission, Such As Broadcasting Equipment, Industrial Control Systems, And Medical Imaging Devices.
Built With Gold-plated Machined Contacts, Flame-retardant PBT Insulators, And A Nickel Or Tin-plated Steel Shell, Our 13W3 D-sub Connectors Ensure Long-term Reliability And Excellent Performance Under Demanding Environments. We Offer Custom Solutions, 3–5 Free Samples, And Fast Global Delivery (3–7 Days). You May Also Be Interested In Our 13W3 Female D-sub Connectorfor Paired Solutions.
| Material | Insulator material | PBT thermoplastic, 30% Glasss filled, UL94V- O |
| Insulator color | Black/Blue (can be customized) | |
| High frequency contact | Copper alloy material, gold plated | |
| Connector with signal contact | Copper alloy, gold plated | |
| Fork | Copper alloy, Ni plated | |
| Shell Material | Steel/SPCC-SD, Nickel or tin plated | |
| Electrical | High frequency contact current rating | 50 or 75 ohm |
| The radio frequency range | 0~3Ghz | |
| Connector with signal contact current rating | 5 Amps | |
| The working voltage | 300V | |
| Contact resistance | 10 milliohms mas | |
| Mechanical | Dielectric Withstanding Voltage | 1000V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
