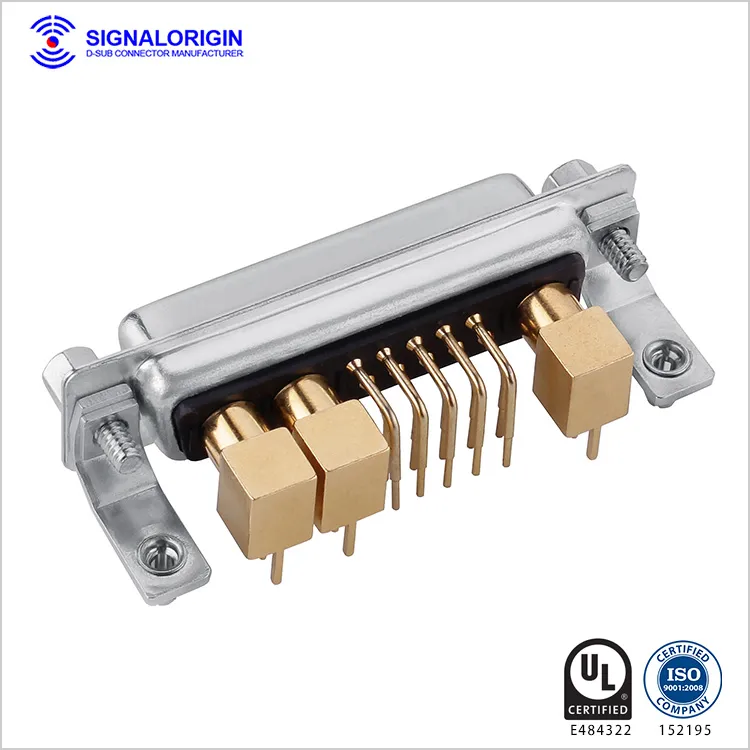

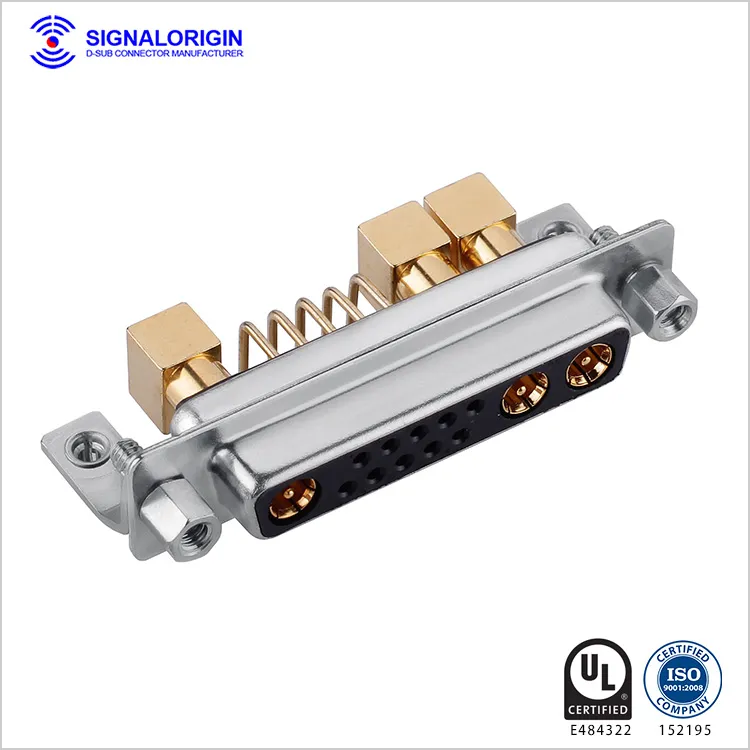

SIGNALORIGIN Is A Professional Manufacturer Of 13W3 Coaxial Female Right Angle D-Sub Connectors In China, Offering High-quality Solutions For Applications Requiring Combined Signal, Power, And RF Coaxial Transmission In A Single Compact Interface. This Mixed Layout Connectorintegrates Coaxial Contacts (50Ω Or 75Ω) With Signal Pins, Making It Ideal For Use In Broadcasting Equipment, Medical Imaging Systems, Industrial Automation, And Military-grade Devices.
Built With Flame-retardant PBT Insulators, Gold-plated Machined Contacts, And A Durable Nickel Or Tin-plated Steel Shell, The 13W3 Connector Ensures Excellent Signal Performance And Long Service Life. Our Product Line Supports Customization, Fast Delivery (3–7 Days), And Comes With 3–5 Free Samples For Testing. Discover More 13W3 Connector Variations Available For Different Layout Needs.
| Material | Insulator material | PBT thermoplastic, 30% Glasss filled, UL94V- O |
| Insulator color | Black/Blue (can be customized) | |
| High frequency contact | Copper alloy material, gold plated | |
| Connector with signal contact | Copper alloy, gold plated | |
| Fork | Copper alloy, Ni plated | |
| Shell Material | Steel/SPCC-SD, Nickel or tin plated | |
| Electrical | High frequency contact current rating | 50 or 75 ohm |
| The radio frequency range | 0~3Ghz | |
| Connector with signal contact current rating | 5 Amps | |
| The working voltage | 300V | |
| Contact resistance | 10 milliohms mas | |
| Mechanical | Dielectric Withstanding Voltage | 1000V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
