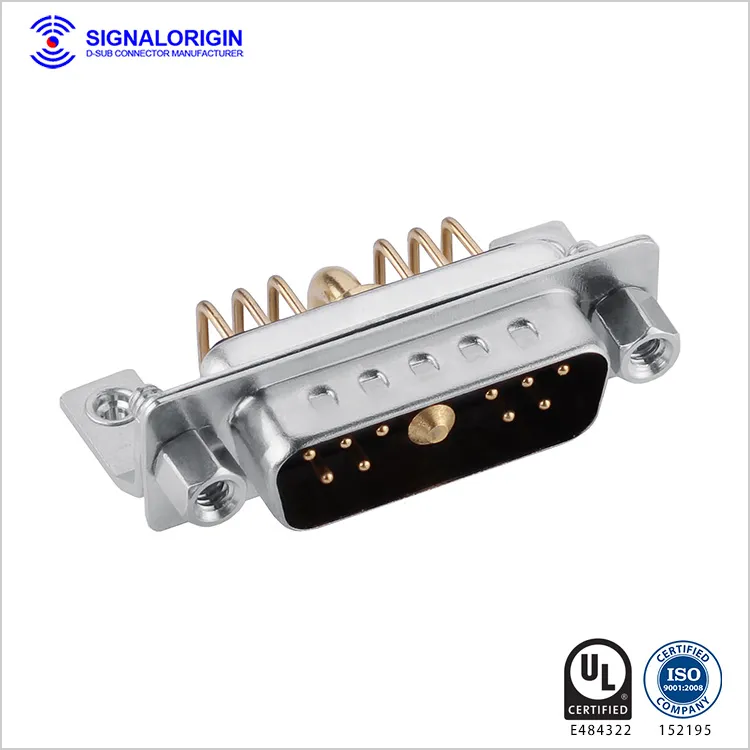

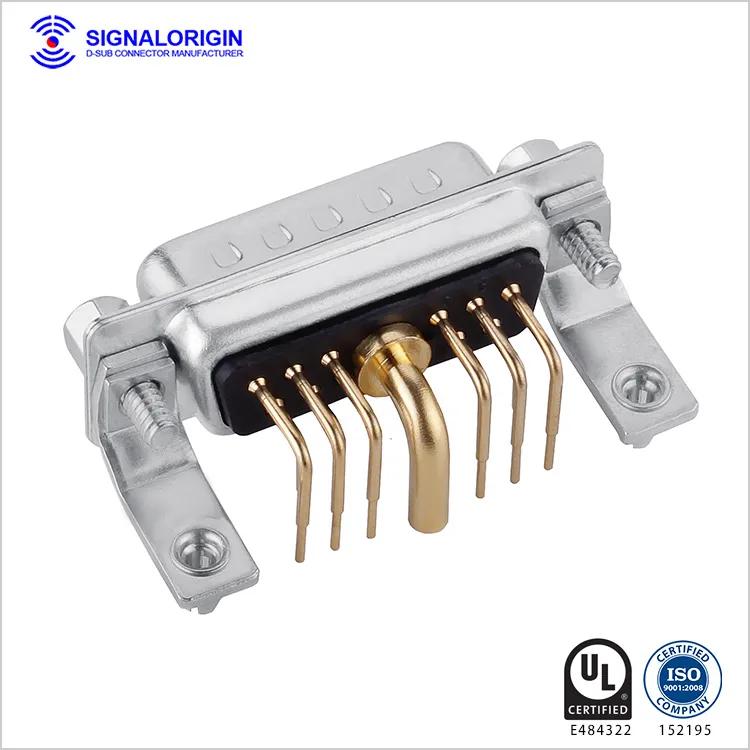

Signalorigin Is A Professional Manufacturer Of The 11w1 D-Sub Male Right Angle High Current Connector In China, Offering Reliable Hybrid Solutions That Combine Power And Signal Contacts In A Single Compact Design. This Connector Includes 1 High Current Contact (10a–40a) And 10 Signal Contacts, With Customizable Terminal Sizes To Suit Various Current Demands. It Is Also Available In An All-Signal Version For Flexible Application Needs.
Our D-Subminiature Connectors Are Widely Used In Industrial Control, Communication Systems, Power Equipment, And Automation Devices. Designed For Flexibility, Durability, And Sealability, Signalorigin Connectors Are Ul Certified, Meet Iso 9001 Quality Standards, And Are Available With Free Samples (3–5 Sets) And Fast Delivery (3–7 Days). Custom Sizes And Configurations Are Also Supported With Responsive And Friendly Customer Service.
Signalorigin Is A Professional Manufacturer Of The 11w1 D-Sub Male Right Angle High Current Connector In China, Offering Reliable Hybrid Solutions That Combine Power And Signal Contacts In A Single Compact Design. This Connector Includes 1 High Current Contact (10a–40a) And 10 Signal Contacts, With Customizable Terminal Sizes To Suit Various Current Demands. It Is Also Available In An All-Signal Version For Flexible Application Needs.
Our D-Subminiature Connectors Are Widely Used In Industrial Control, Communication Systems, Power Equipment, And Automation Devices. Designed For Flexibility, Durability, And Sealability, Signalorigin Connectors Are Ul Certified, Meet Iso 9001 Quality Standards, And Are Available With Free Samples (3–5 Sets) And Fast Delivery (3–7 Days). Custom Sizes And Configurations Are Also Supported With Responsive And Friendly Customer Service.
| Material | Insulator material | PBT thermoplastic, UL94-V0 fireproof rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Brass | |
| Contact plating | Gold Plated, 1U”-30U” | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
| Electrical | Working voltage | 300V AC |
| High power contacts current rating | 10A-40A(customized) | |
| Signal contacts current rating | 3A | |
| Contact resistance | 2.7 milliohms max | |
| Insulation resistance | 2000MΩ Min.at 500v DC | |
| Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin ￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN ￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
